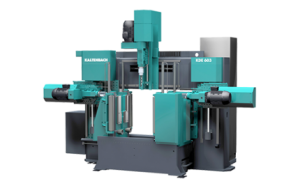

KDE 603

Product Description

Drilling Machine for Profiles
Capacity range W x H [mm]: 600 x 500 and Number of Tools: 3

BENEFITS AT A GLANCE
  • Capacity Range (w x h): 600 × 500 mm
  • Robust, low-vibration design prolongs machine and tool life
  • Machine portal in robust welded construction incorporating two horizontal and one vertical drilling unit
  • Efficient drilling, contour-marking, centre-marking, counter-sinking and thread-cutting on all three drill axes simultaneously
  • Powerful clamping system reliably holds material and reduces vibrations to prolong band life
  • Intelligent material measurement integrated into clamping system for greater process reliability
  • Rapid/working feed concept for shorter idle times
  • Servomotor and ball screw for high-precision drill axis positioning and feed control
  • A saw can be incorporated to create a saw-drill combination
  • Manual quick-change chuck and tool calibrator
  • Tool-centric processing minimises tool changes
  • Use of HSS drills
  • Three drill axes each with one drilling tool
