HPR 130/260 MILD STEEL

Product Description

Data sheet :

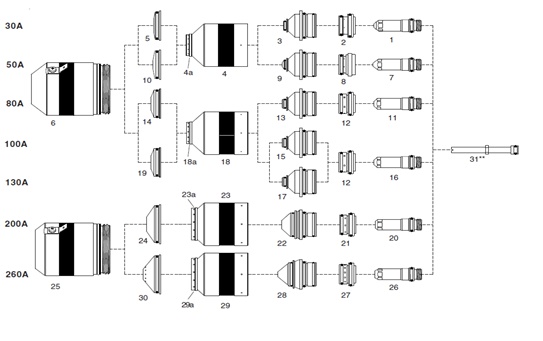

No. Ref. Code Description Pkg. No. Ref. Code Description Pkg.
1 220192TD S230010037 Electrode 30A 10 19 220183 S230010021 Shield 130A 1
2 220180 S230010043 Swirl Ring 30A Max Life 1 20 220352TD S230010041 Electrode 200A 10
220180 S230010064 Swirl Ring 30A LAVA 1 220352TD S230010061 Electrode 200A Silver Ring 10
3 220193 S230010030 Nozzle 30A 5 21 220353 S230010046 Swirl Ring 200A Max Life 1
4 220313 S230010054 Retaining cap   30/50A 1 220353 S230010067 Swirl Ring 200A LAVA 1
5 220194 S230010048 Shield 30A 1 22 220354 S230010034 Nozzle 200A 5
6 220173 S230010025 Shield cap  30/130A  “Top Quality” 1 23 220355 S230010056 Retaining cap 200A 1
220173L S230010073 Shield cap   30/130A 1 24 220356 S230010052 Shield 200A  (no XD) 1
7 220552TD S230010038 Electrode 50A 10 25 220398 S230010026 Shield cap  200/260A  “Top Quality” 1
8 220553 S230010044 Swirl Ring 50A Max Life 1 220398L S230010074 Shield cap   200/260A 1
220553 S230010065 Swirl Ring 50A LAVA 1 26 220435TD S230010018 Electrode 260A 10
9 220554 S230010031 Nozzle 50A 5 220435TD S230010062 Electrode 260A Silver Ring 10
10 220555 S230010049 Shield 50A 1 27 220436 S230010047 Swirl Ring 260A Max Life 1
11 220187TD S230010039 Electrode 80A 10 220436 S230010068 Swirl Ring 260A LAVA 1
12 220179 S230010045 Swirl Ring 80/130A Max Life 1 28 220439 S230010035 Nozzle 260A 5
220179 S230010066 Swirl Ring 80/130A LAVA 1 29 220433 S230010024 Retaining cap 260A 1
13 220188 S230010032 Nozzle 80A 5 30 220440 S230010022 Shield 260A  (no XD) 1
14 220189 S230010050 Shield 80A 1 31 220340TD S230010063 Water cooling tube 1
15 220510 S230010036 Nozzle  100A 5
16 220181TD S230010017 Electrode 130A 10 4a 220313 S230010069 for Retaining Cap 30/50A 2
220181TD S230010060 Electrode 130A BiMetal 10 18a 220176 S230010070 for Retaining Cap 80/130A 2
17 220182 S230010033 Nozzle 130A 5 23a 220355 S230010071 for Retaining Cap 200A 2
18 220176 S230010055 Retaining cap 80/130A 1 29a 220433 S230010072 for Retaining Cap 260A 2
