Servifil 303S

3341.10 HT

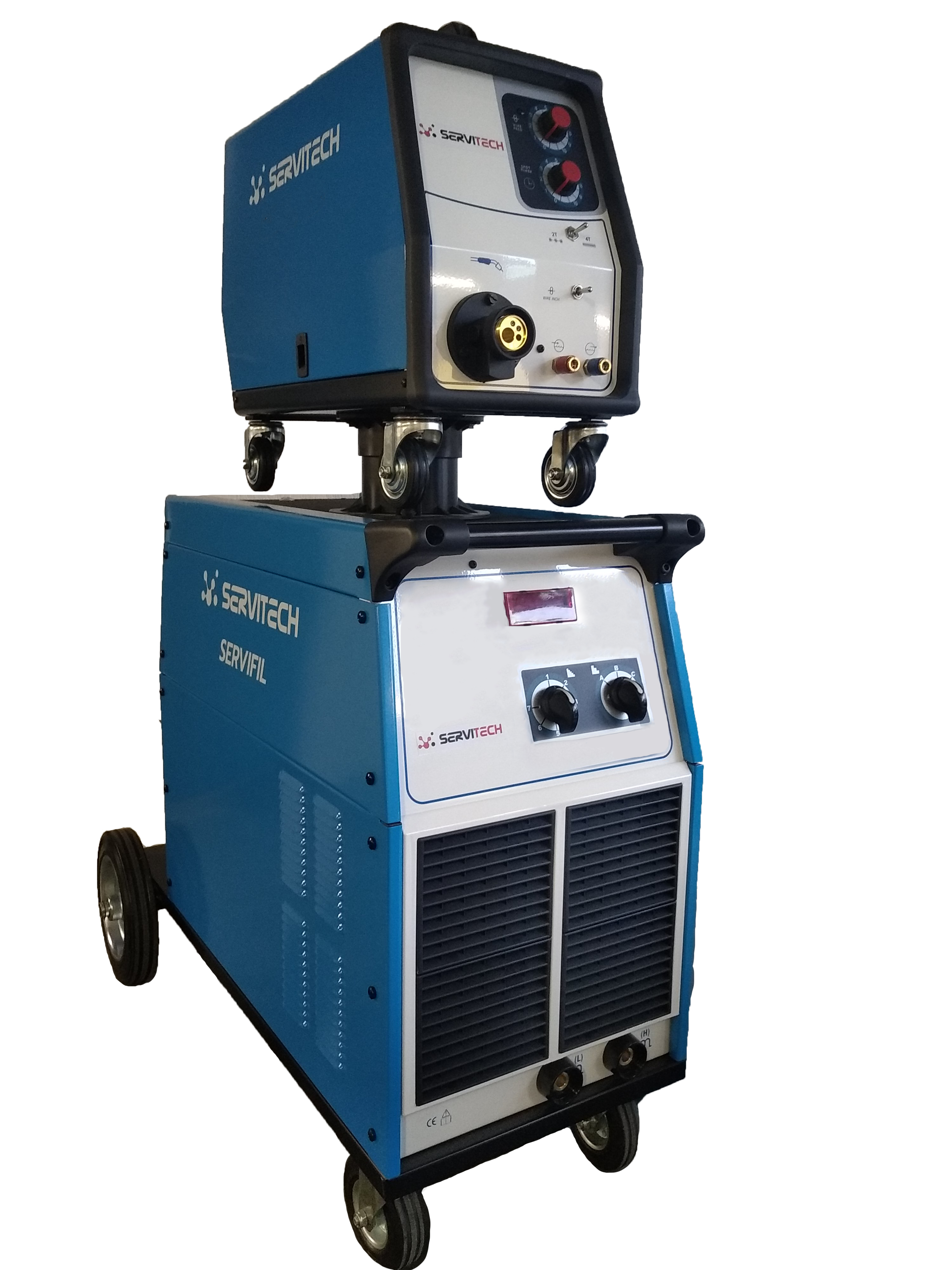

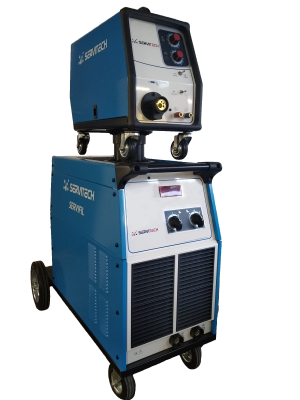

Three-phase MIG welding unit on wheels.

Price of machine with WF 5m and welding kit.


Product Description

Data sheet : SERVIFIL 303S

Input Voltage (3ph) 230/400V 50/60Hz
Power 60% 9,5 KW
Uo 18 ÷ 45 V
Amp. Min-max 30 ÷ 300 A
Amp. 60974-1 35% 300 A
60% 230 A
100% 180 A
Adjust. Pos. 14
Steel 0,6 ÷ 1,2 Ø mm
Stainless Steel 0,8 ÷ 1,2 Ø mm
Aluminium 0,8 ÷ 1,2 Ø mm
Insulation H
Protec. Degree IP22S
Dimens. (L*W*H) 920x500x1240 mm
Box (L*W*H) Generator 940x390x610 mm
Wire feeder 675x290x485 mm
Weight box/net 121,4 / 116,8 Kg
Code S110235011
Ready to be used

Equipped with Euro connection torch, pressure regulator, gas hose, earth cable and clamp, with timer for spot welding and with welding current disply.

Well suited for medium size industrial welding workshops.

The model is supplied with a 2 rolls separate wire feed unit with 5M. Interconnecting cable.
