3399.00€ HT
Welding inverter designed to guarantee excellent welding qualities and be reliable and simple to use. For TIG welding using direct or alternate current and for welding all commercial coated electrodes.
Price of machine with TIG torch, welding cables and gas regulator.

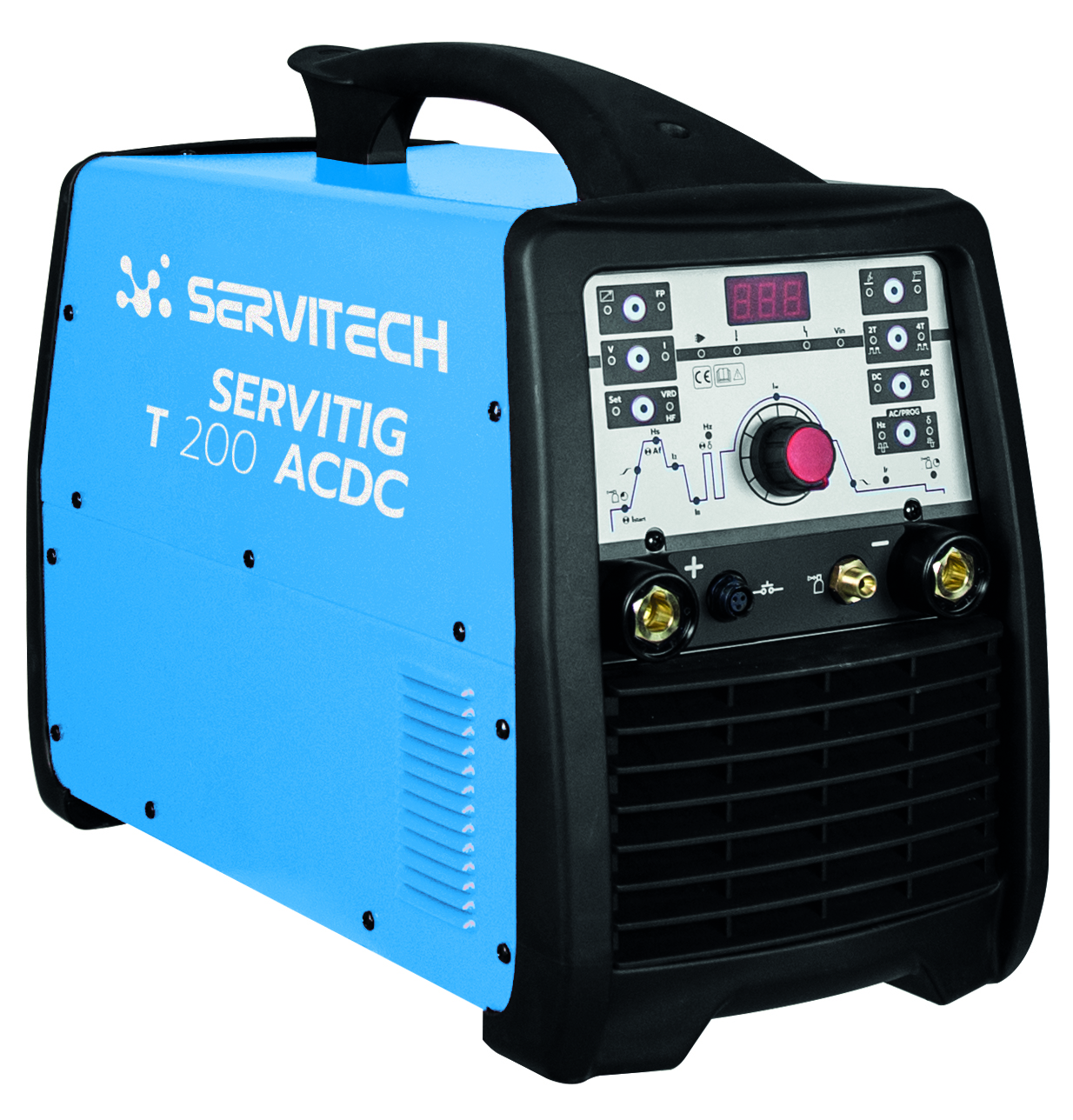

Data sheet : SERVITIG T 200 ACDC
Nom | SERVITIG T 200 ACDC | ||
Input Voltage | (1ph) 230V 50/60Hz | ||
MMA | TIG DC | TIG AC | |
Power 60% | 8 KVA | 5,6 KVA | 5 KVA |
Uo | 70 V | 70 V | 70 V |
Amp. Min-max | 5 ÷ 200 A | 5 ÷ 200 A | 10 ÷ 200 A |
Amp. 60974-1 | 40% 200 A 60% 160 A 100% 125 A |
40% 200 A 60% 160 A 100% 125 A |
40% 200 A 60% 160 A 100% 125 A |
Ø E | 1,6 ÷ 5 mm | – | – |
Insulation | H | ||
Protec. Degree | IP22S | ||
Dimens. (L*W*H) | 530x255x415 mm | ||
Box (L*W*H) | 665x305x460 mm | ||
Weight box/net | 25 / 23,6 Kg | ||
Code | S110235036 | ||
Connex. ready . Code | S110235037 | ||
Generator | S110235036 | ||
TIG torch | S110234822 | ||
Ground cable | S110235357 | ||
Electr. Holder | S110235344 | ||
Trolley | – | ||
COOLER 2 | – | ||
Cooling liquid | – | ||
Gas regulator | S110234651 | ||
Kit Code | S110235376 |
An easy to read overview simplifies choice between the various types of welding (MMA, TIG DC, TIG AC) and regulation of the various welding parameters, like initial, base, peak current, pulse, crater filler, up and down slopes, pre and post gas.
The balancing function enables the ratio between penetration and cleaning of the weld pool to be regulatetd. It may be used with remote control or foot pedal control. Water cooling ready (optional for Compact 220 AC/DC). Ideal for use in industry, on steel structural work, food industry, automotive.
