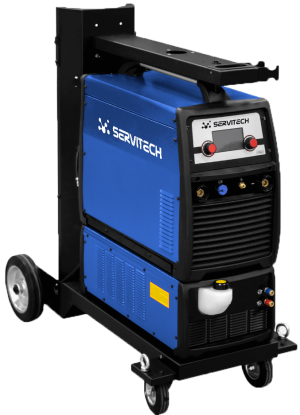

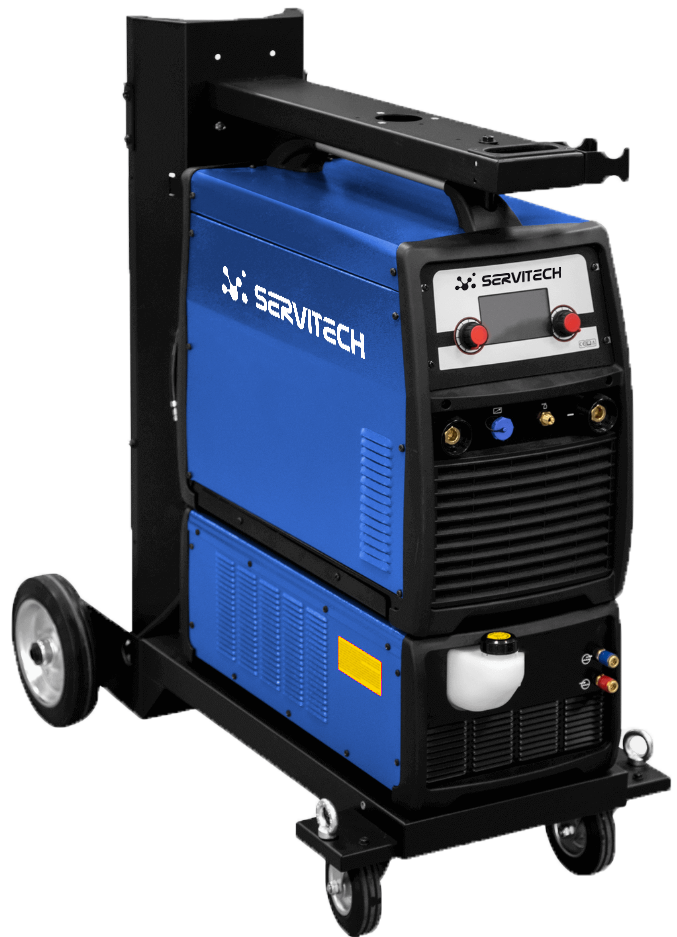

Data sheet : SERVITIG T 410 ACDC
Nom | SERVITIG T 410 ACDC | |
Input Voltage | (3ph) 400V 50/60Hz | |
MMA | TIG DC | |
Maximum Power | 17,5 KVA | 17,5 KVA |
Uo | 63 V | 63 V |
Amp. Min-max | 5 ÷ 400 A | 5 ÷ 400 A |
Duty Cycle 40°C | 45% 400 A 60% 360 A 100% 320 A |
40% 400 A 60% 350 A 100% 300 A |
Ø E | 1,6 ÷ 5 mm | 1,6 ÷ 6 mm |
Insulation | H | |
Protec. Degree | IP22S | |
Dimens. (L*W*H) | 650x320x530 mm | |
Box (L*W*H) | 840x320x630 mm | |
Weight box/net | 51,4 / 48,4 Kg | |
Code | S110235481 |
