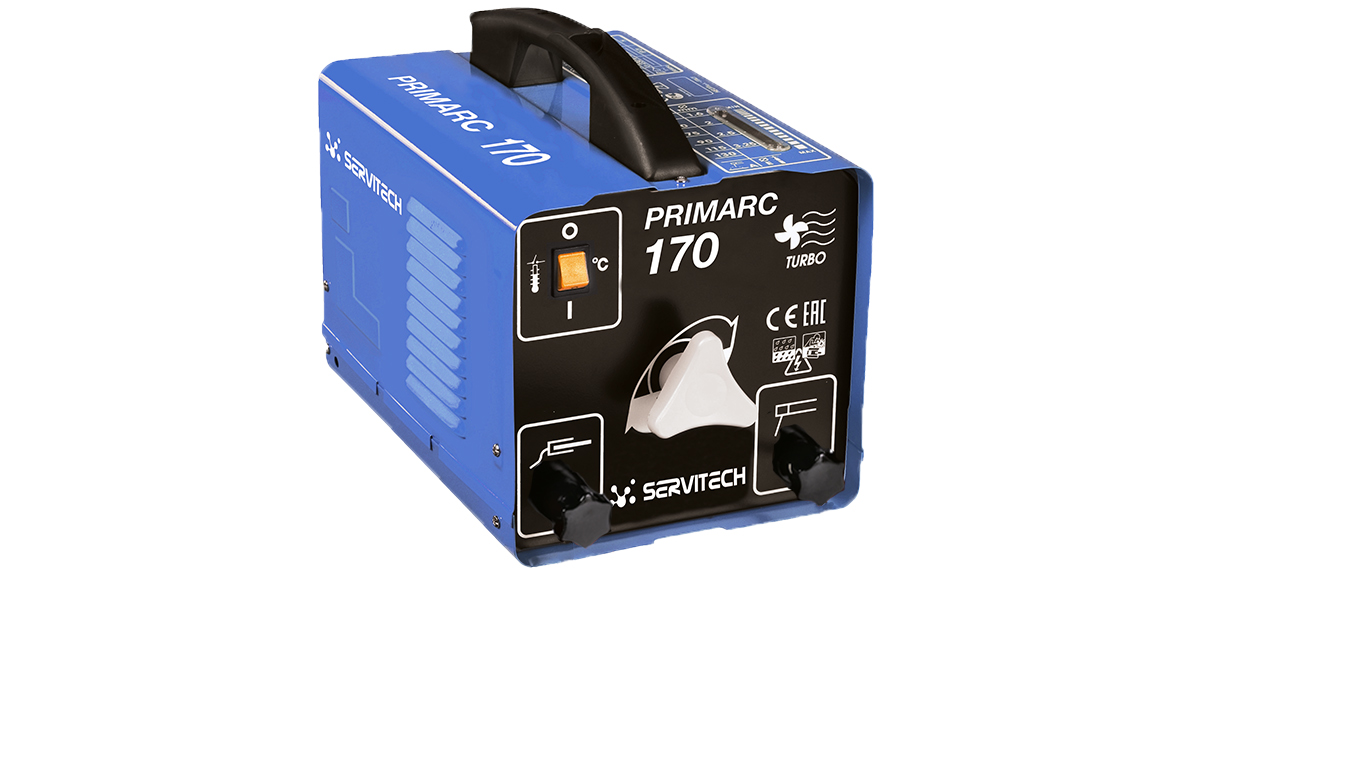

Primarc 170
313.50€ HT
Single phase AC portable welding units. Stepless control of the welding current. Thermostatic overload protection.
Product Description
Data sheet : PRIMARC 170
| PRIMARC 170 | |
| Input Voltage | (1ph) 230/400V 50/60Hz |
| Power 60% | 4 KVA |
| Uo | 48 V |
| Amp. Min-Max | 35 ÷ 170 A±10% |
| ∅E | 1,6 ÷ 4 mm |
| Insulation | H |
| Protect Degree | IP21S |
| Protect Degree | 500x255x350 mm |
| Box (LxWxH) | 550x280x365 mm |
| Weight box/net | 19,6 / 18,5 Kg |
| Code | S110234964 |
Additional Information
| Weight | 5.6 kg |
|---|---|
| Dimensions | 500 × 255 × 350 cm |
