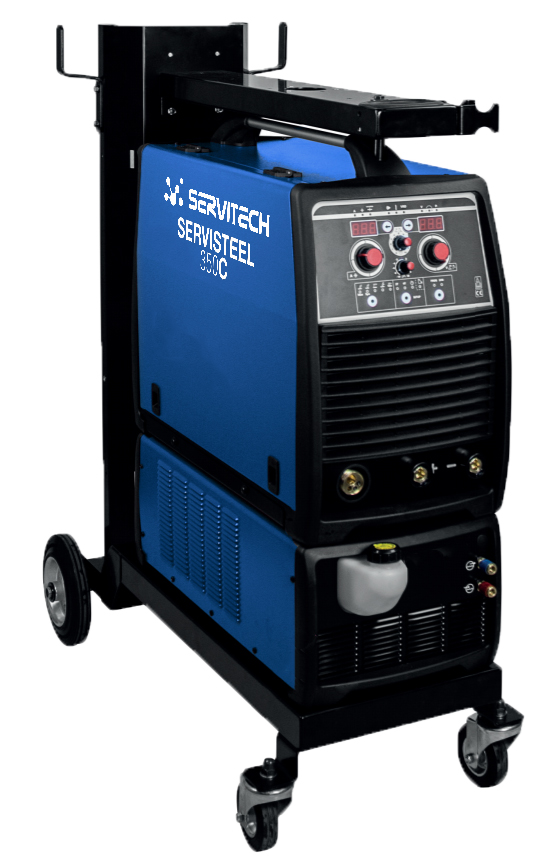

Servisteel 350C
4534.30€ HT
This price includes : Generator, Ground cable, gas regulator and trolley. MIG torch not included.
Product Description
Data sheet : SERVISTEEL 350C
| Nom | SERVISTEEL 350C | ||
| Input Voltage | (3ph) 400V 50/60Hz | ||
| Power 60% | 12 KVA | ||
| MMA | TIG | MIG | |
| Uo | 75 ÷ 12 V | 75 ÷ 12 V | 75 ÷ 12 V |
| Amp. Min-max | 10 ÷ 350 A | 5 ÷ 350 A | 30 ÷ 350 A |
| Amp. 60974-1 | 50% 350 A 100% 280 A |
50% 350 A 100% 280 A |
50% 350 A 100% 280 A |
| Aluminium | – | – | 0,8 ÷ 1,6 |
| Steel | – | – | 0,6 ÷ 1,6 |
| Flux Core | – | – | 0,6 ÷ 1,6 |
| Stainless Steel | – | – | 0,8 ÷ 1,6 |
| Ø E | 1,6 ÷ 6 | – | – |
| Electrode Type | 6013 – 7018 – Cast Iron – CrNi | ||
| Insulation | H | ||
| Protec. Degree | IP23S | ||
| Dimens. (L*W*H) | 1010x510x1070 mm | ||
| Box (L*W*H) | Generator 840x390x630 mm – 43,4 / 40,8 Kg Trolley 300x1065x365 mm – 26,4 / 25,4 Kg |
||
| Weight box/net | 70,4 / 66,8 Kg | ||
| Code | S110235066 (Generator only) | ||
