7287.30€ HT
Microprocessor-controlled, multi-process welding inverter compact or with separate wire feeder suitable for
MIG/MAG (manual, synergic), TIG-DC (continuous) and MMA welding.
This price includes : Generator, Ground cable, trolley, separate wire feeder, interconn. cable 70mm2 10mt W.C. and gas regulator. MIG torch not included.

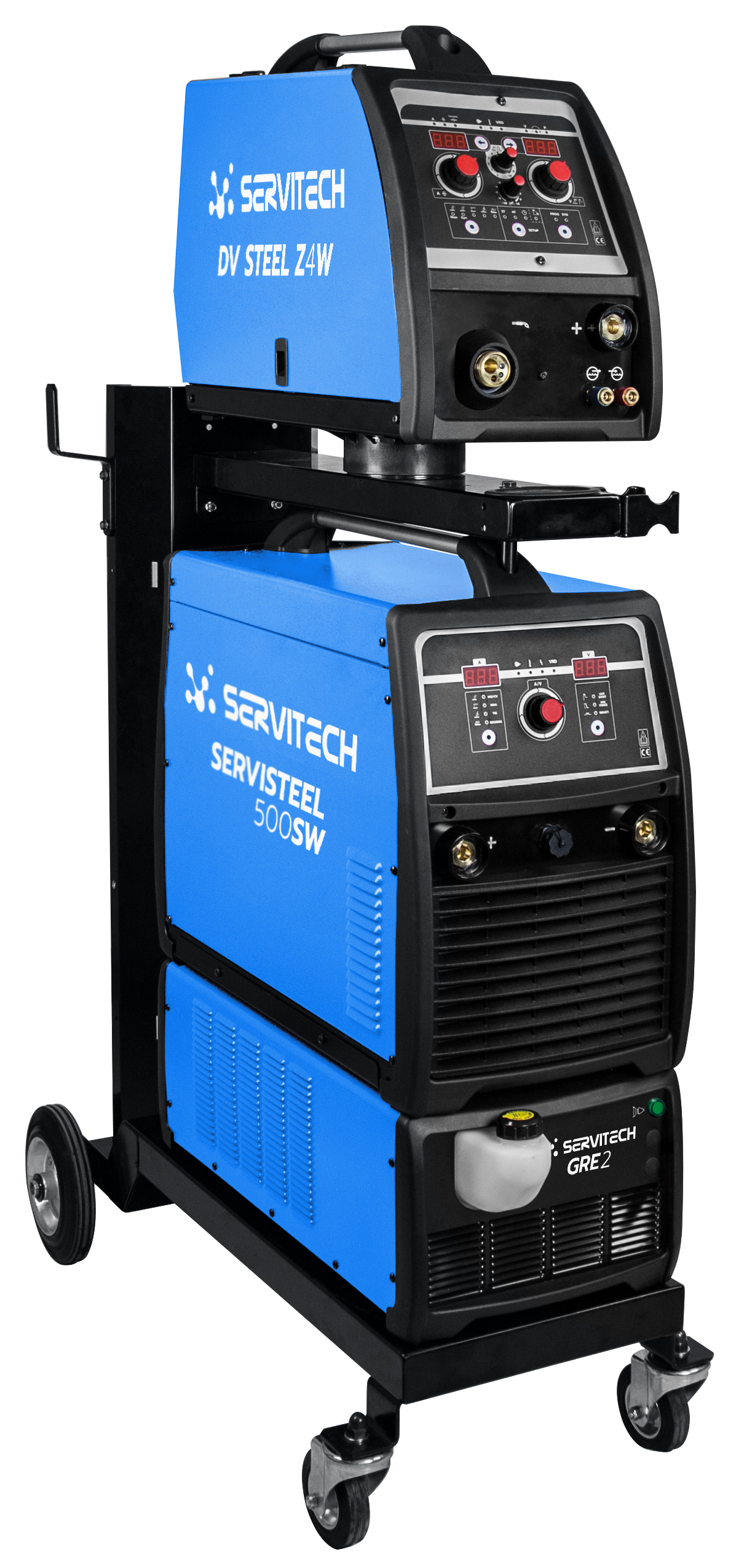

Data sheet : SERVISTEEL 500 S (W)
Nom | SERVISTEEL 500 SW | ||
Input Voltage | (3ph) 400V 50/60Hz | ||
Power 60% | 22 KVA | ||
MMA | TIG | MIG | |
Uo | 82 V | 12 V | 82 V |
Amp. Min-max | 10 ÷ 500 A | 5 ÷ 500 A | 30 ÷ 500 A |
Amp. 60974-1 | 60% 500 A 100% 400 A |
60% 500 A 100% 400 A |
60% 500 A 100% 400 A |
Aluminium | – | – | 0,8 ÷ 1,6 |
Steel | – | – | 0,6 ÷ 1,6 |
Flux Core | – | – | 0,8 ÷ 2 |
Stainless Steel | – | – | 0,8 ÷ 1,6 |
Ø E | 1,6 ÷ 8 | – | – |
Electrode Type | 6010 – 6011 – 6013 – 7018 – Cast Iron – Alu – CrNi | ||
Insulation | H | ||
Protec. Degree | IP23S | ||
Dimens. (L*W*H) | Generator 650x320x530 mm | ||
Box (L*W*H) | Generator 810x390x630 mm – 53,5 / 51 Kg Wire feeder 695x315x500 mm – 22 / 20,8 Kg Cooler unit 800x380x320 mm – 24,6 / 23,3 Kg Trolley 510x1035x300 mm – 26,4 / 25,4 Kg |
||
Weight box/net | 115 / 109 Kg | ||
Code | S110235400 (Gen+WF+Cooler+Trolley) |
An intuitive and easy to use control panel fitted with 2 digital display, shows all the welding parameters. In synergic MIG/MAG welding, the microprocessor ensures easy and quick setting of the programs thus always guaranteeing optimal arc stability and high welding quality.
MIG-MAG features: continuous and Pulsed (Activation through a unic code) – pre-set synergic curves – storage of custom welding settings – 2T/4T, spot function
selection – pre-post gas time regulation – electronic inductance, soft start, burn back time, hot start, slope down,
crater filler. TIG DC features: lift arc – continuous welding – 2T/4T – Current, final current up/down slope regulation.
MMA features – antisticking – adjustable hot start and arc force. Ideal for professional use, medium-light workshop,
metallic furnishings fabrication, industrial and automotive bodyshop, shipbuilding and piping.
Thanks to an excellent arc control you can obtain high quality deposition. The user can save and recall more then 200 working point and to store them in a customized JOB LIST. Easy to update thanks to USB interface . For models SERVISTEEL , from the separate wire-feeder the user can set all the parameters up to a distance of 50 meters from the power source.
