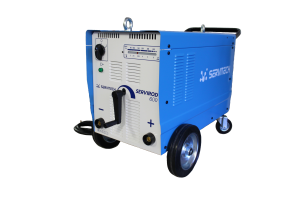

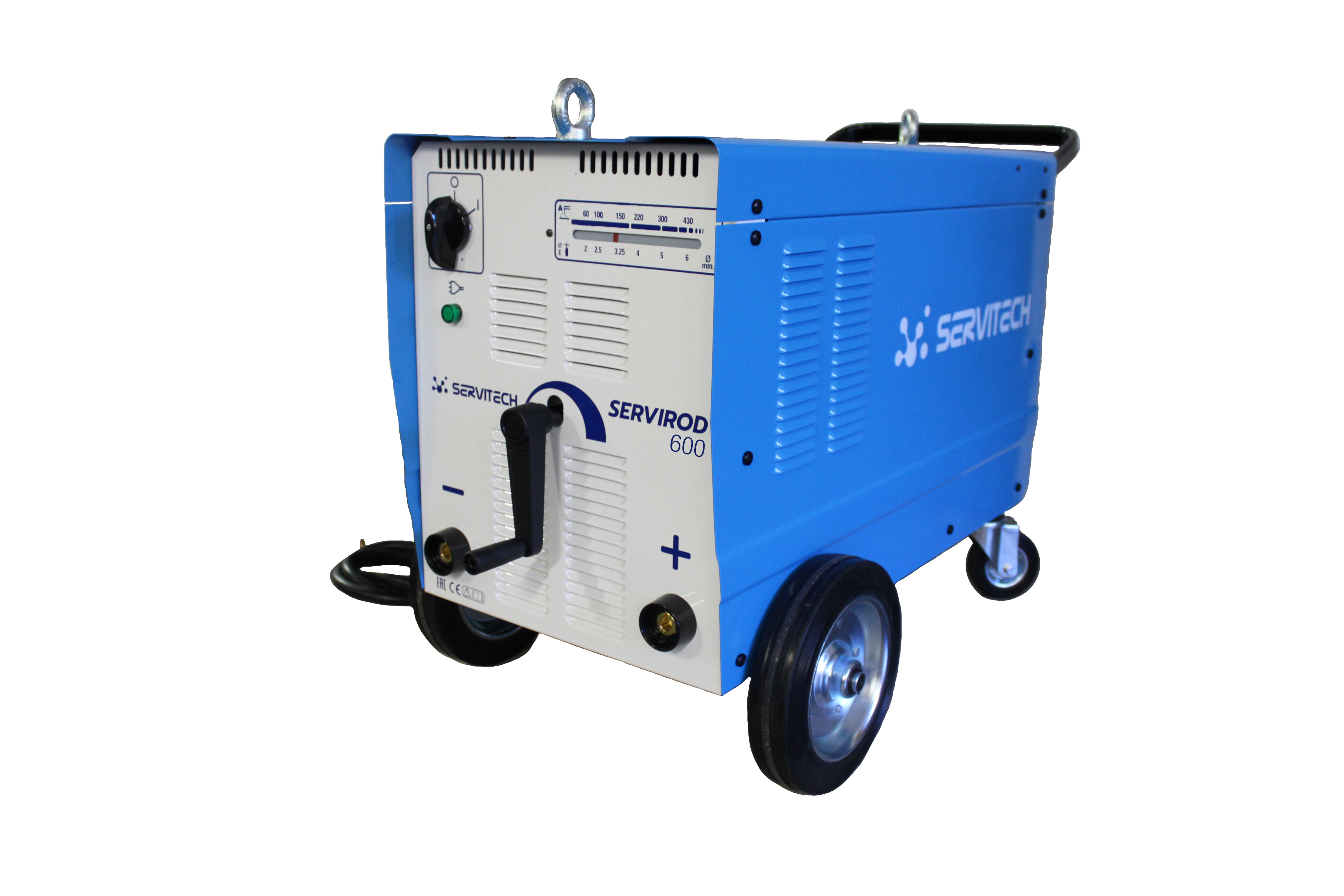

Servirod 600
2980.00€ HT
These-phase DC welding units, on wheels, with cooling fan, suitable for welding all types of electrodes for heavy duty work. Stepless control of the welding current by magnetic shunt.
Product Description
Data sheet : SERVIROD 600
| Nom | SERVIROD 600 |
| Input Voltage | (3ph) 230/400V 50/60Hz |
| Power 60% | 35 KVA |
| Uo | 71 ÷ 78 V |
| Amp. Min-Max | 60 ÷ 550 |
| Amp. 60974-1 | 35% 550 A |
| 60% 420 A | |
| 100% 350 A | |
| ∅E | 2 ÷ 6 mm |
| Insulation | H |
| Protect Degree | IP23S |
| Dimens. (LxWwH) | 1120×620×740 |
| Box (LxWxH) | 1150×520×720 |
| Weight box/net | 213 / 200. 5Kg |
| Code | S110234976 |
