2090.00€ HT
These-phase DC welding units, on wheels, with cooling fan, suitable for welding all types of electrodes. Stepless control of welding current by magnetic shunt.

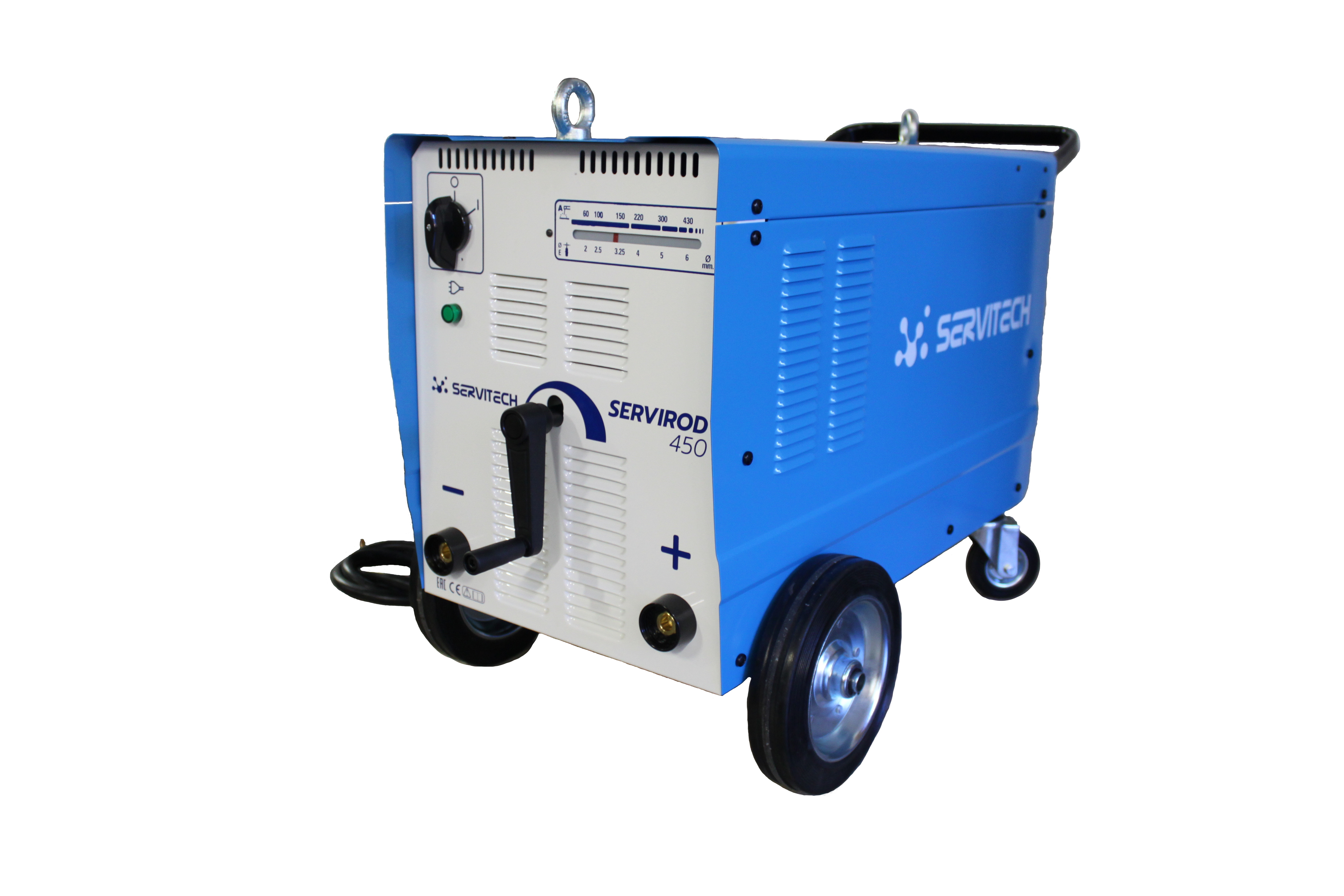

Data sheet : SERVIROD 450
Nom | SERVIROD 450 |
Input Voltage | (3ph) 230/400V 50/60Hz |
Power 60% | 23 KVA |
Uo | 70 ÷ 76 V |
Amp. Min-Max | 55 ÷ 400 |
Amp. 60974-1 | 35% 400 A |
60% 305 A | |
100% 235 A | |
∅E | 2 ÷ 6 mm |
Insulation | H |
Protect Degree | IP23S |
Dimens. (LxWwH) | 1000×520×595 |
Box (LxWxH) | 985×410×550 |
Weight box/net | 131.2 / 128.3 Kg |
Code | S110234974 |
