1389.00€ HT
These-phase DC welding units, on wheels, with cooling fan, suitable for welding all types of electrodes. Stepless control of welding current by magnetic shunt.

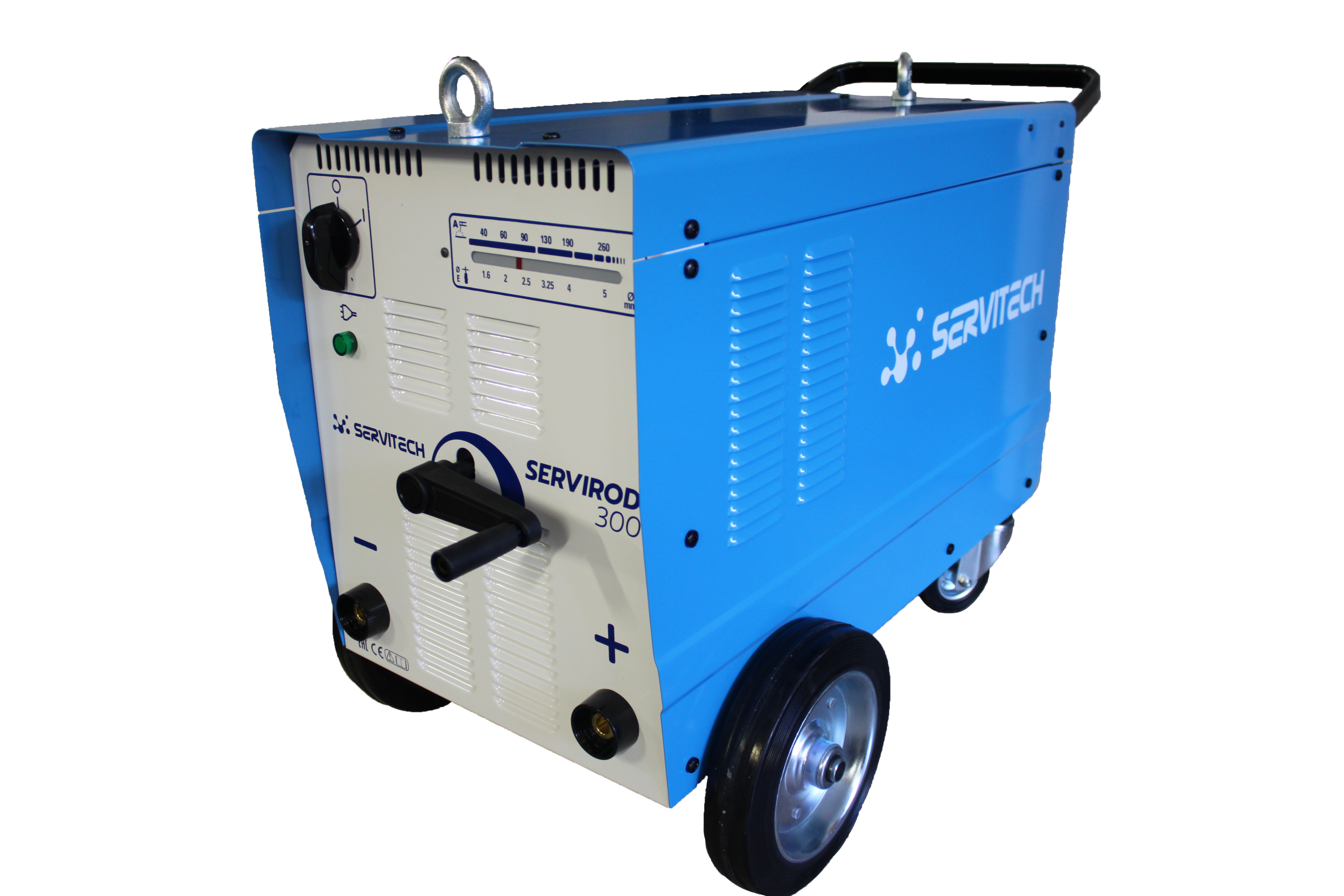

Data sheet : SERVIROD 300
Nom | SERVIROD 300 |
Input Voltage | (3ph) 230/400V 50/60Hz |
Power 60% | 13,2 KVA |
Uo | 61 ÷ 66 V |
Amp. Min-Max | 40 ÷ 260 |
Amp. 60974-1 | 35% 260 A |
60% 200A | |
100% 155 A | |
∅E | 1,6 ÷ 6 mm |
Insulation | H |
Protect Degree | IP23S |
Dimens. (LxWwH) | 1000×520×595 |
Box (LxWxH) | 985×410×550 |
Weight box/net | 95.2 / 92. 3Kg |
Code | S110234971 |
