MAIN FEATURES : Inverter Technology – Automatic line voltage compensation – Light and versatile – Patent usefull torch storage and cable wrapper – Easy to set thanks to the printed welding parameters – Excellent results even for novice users – Power generator friendly.
This price includes : KIT (5Kg FCW, PM, Torch, wo/ss PPE&Det).

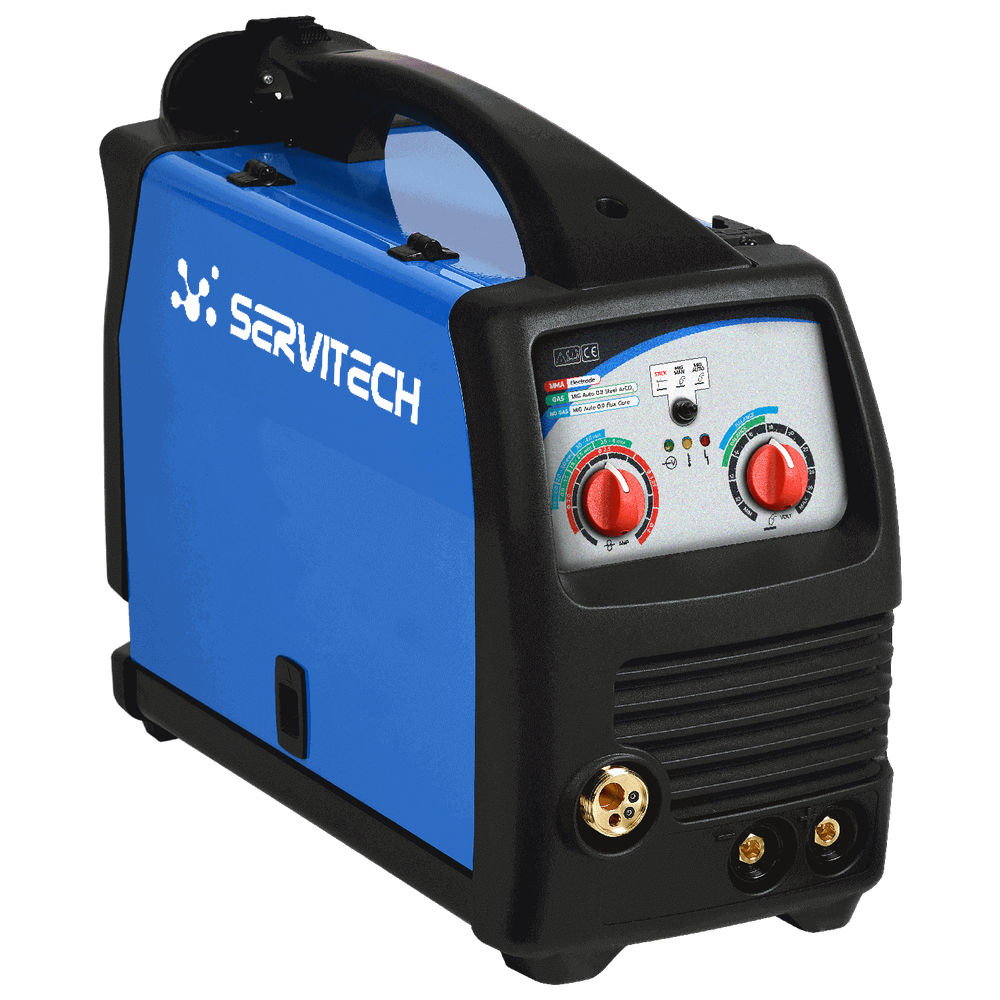

Data sheet : SERVIMIG 170 MP
Nom | SERVIMIG 170 MP | |
Input Voltage | (1ph) 230V 50/60Hz | |
Power 60% | 1,9 KVA | |
MMA | MIG | |
Uo | 54 V | 24 V |
Amp. Min-max | 20 ÷ 180 A | 20 ÷ 180 A |
Amp. 60974-1 | 20% 180 A 100% 75 A |
20% 180 A 100% 75 A |
Steel | 0,6 ÷ 1,0 Ø mm | |
Stainless Steel | 0,8 ÷ 1,0 Ø mm | |
Flux Core | 0,9 Ø mm | |
Aluminium | 0,8 ÷ 1,0 Ø mm | |
Brazing | 0,8 ÷ 1,0 Ø mm | |
Ø Electrode | Ø 1,6 ÷ 4,0 mm | |
Electrode Type | 6013 – 7018 – CrNi | |
Insulation | H | |
Protec. Degree | IP22S | |
Dimens. (L*W*H) | 480x220x385 mm | |
Box (L*W*H) | 685x275x450 mm | |
Weight net | 14 / 12 Kg | |
Code | S110235786 |
