3140.00€ HT
In STICK mode, the microprocessor controls the Hot Start, Arc Force and Anti-sticking functions. In TIG mode, it controls the Lift Arc function and in MIG mode it allows either manual or fully synergic welding. Slope-up motor setting and automatic soft start wire feed control of the arc.

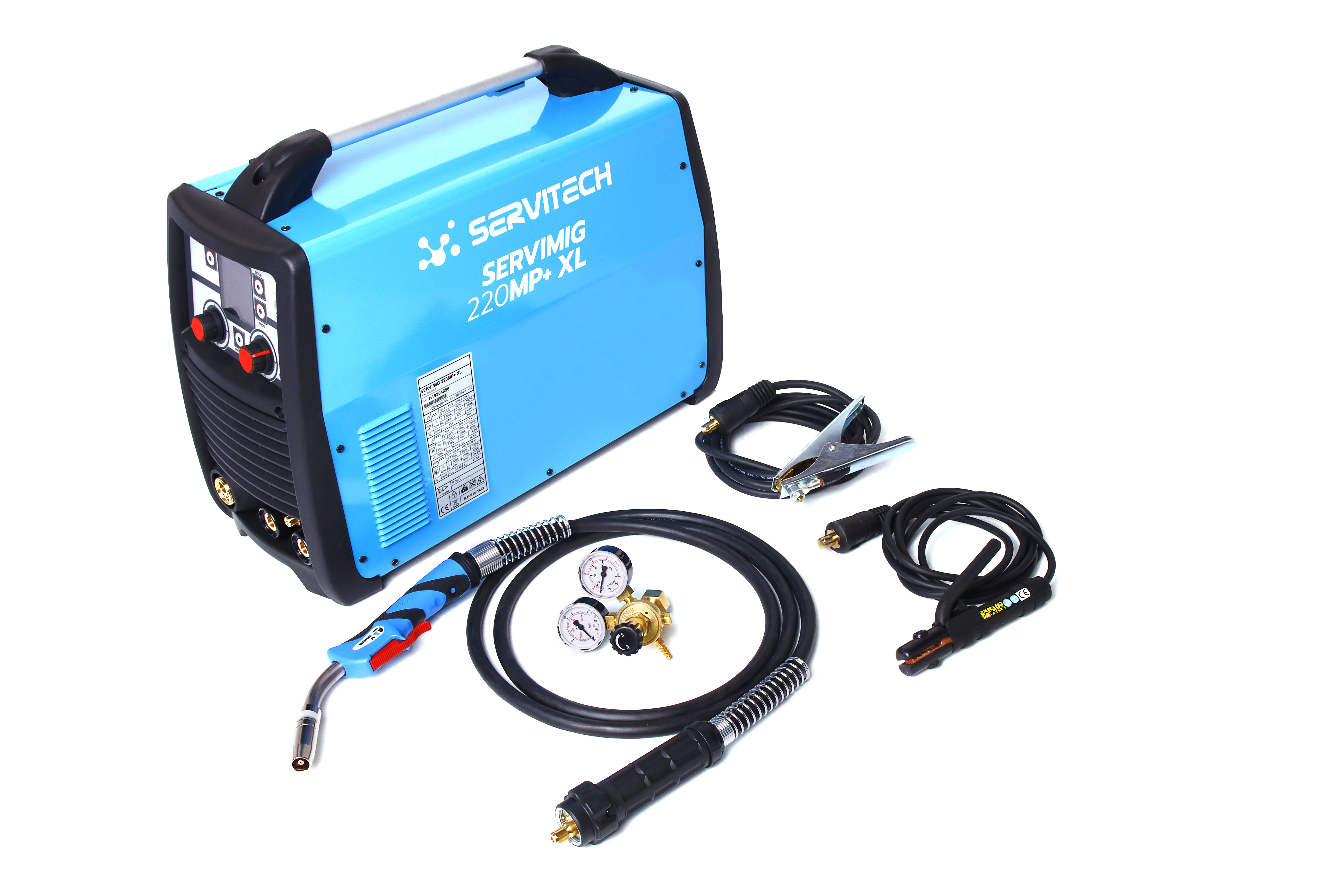

This price includes : Generator, Ground cable, MIG torch, gas regulator and electrode holder.
Data sheet : SERVIMIG 220MP+ XL
Nom | SERVIMIG 220 MP+ XL | ||
Input Voltage | (1ph) 230V 50/60Hz | ||
Power 60% | 5,5 KVA | ||
MMA | TIG | MIG | |
Uo | 65 V | 65 V | 35 V |
Amp. Min-max | 5 ÷ 200 A | 5 ÷ 200 A | 20 ÷ 200 A |
Amp. 60974-1 | 35% 200 A 100% 120 A |
35% 200 A 100% 120 A |
35% 200 A 100% 140 A |
Aluminium | – | – | Ø 0,8 ÷ 1,2 mm |
Steel | – | – | Ø 0,6 ÷ 1,0 mm |
Flux Core | – | – | Ø 0,8 ÷ 1,0 mm |
Stainless Steel | – | – | Ø 0,8 ÷ 1,0 mm |
Brazing | – | – | Ø 0,8 ÷ 1,0 mm |
Ø E | 1,6 ÷ 5 mm | – | – |
Insulation | H | ||
Protec. Degree | IP22S | ||
Dimens. (L*W*H) | 600x255x480 mm | ||
Box (L*W*H) | 750x400x515 mm | ||
Weight net | 30 / 27,4 Kg | ||
Code | S110235381 | ||
CONFIGURATION KIT | |||
Generator | S110235432 | ||
Electr. Holder | S110235348 | ||
MIG torch | S110234665 | ||
Gas regulator | S110234653 | ||
Earth clamp | S110235352 | ||
Kit Code | S110235381 |

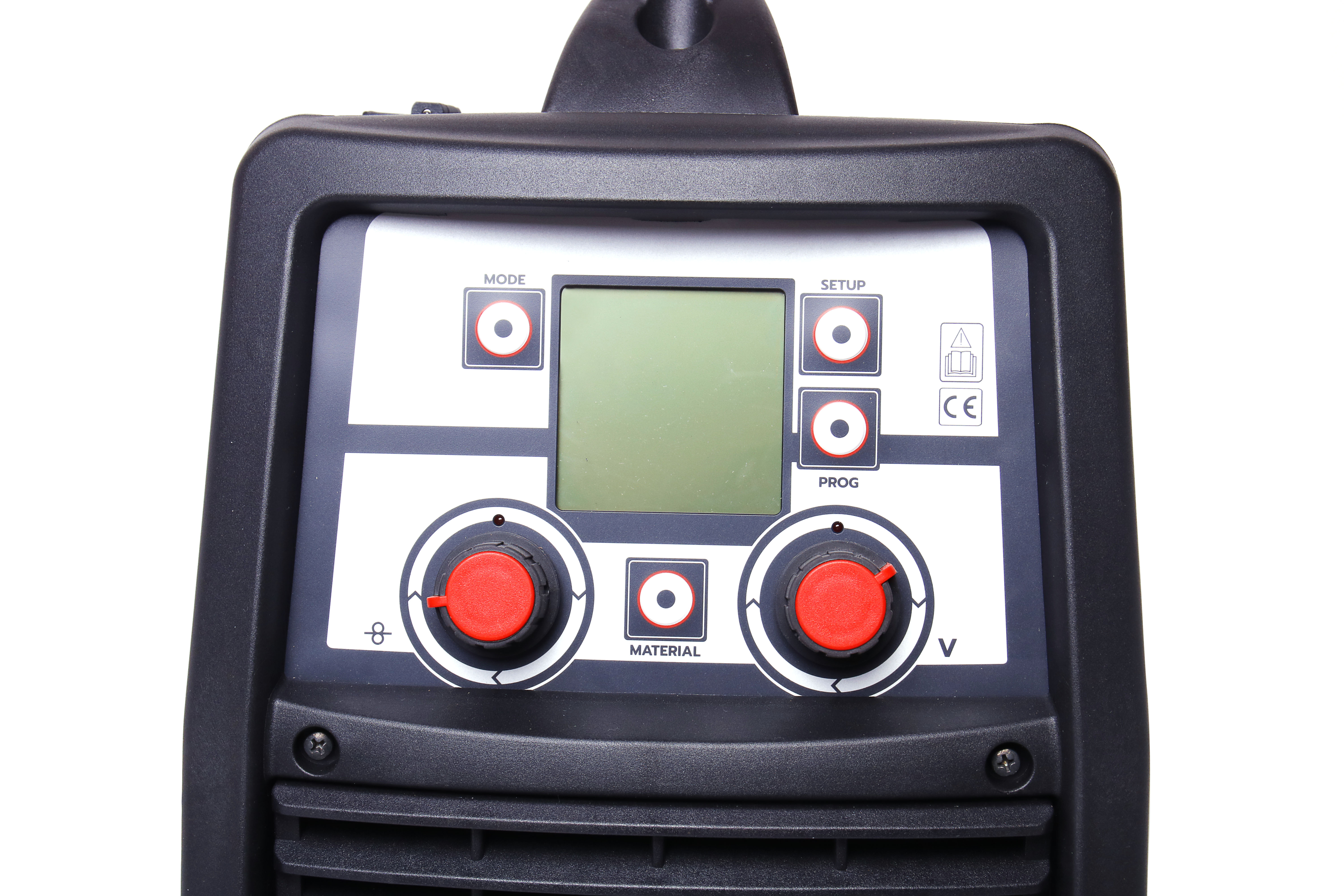

All functions can be easily selected on the front panel. The digital LCD display shows the welding voltage and current and all the parameters selected. Their simplicity and versatility make them perfect for use in body
shops, workshops and for all maintenance tasks.
Microprocessor-controlled welding inverter suitable for DC controlled MIG/MAG, TIG and STICK WELDING, which guarantees excellent stability of the welding arc and no welding spatters.
