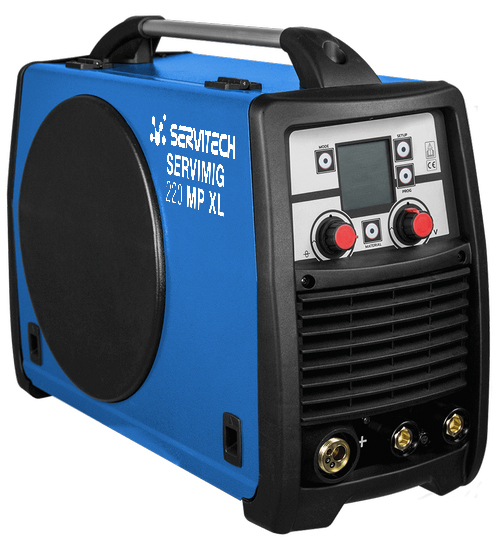

Servimig 210 MP XL

2670.00 HT

Microprocessor-controlled welding inverter suitable for DC controlled MIG/MAG, TIG and STICK WELDING, which guarantees excellent stability of the welding arc and no welding spatters.

This price includes : Generator, Ground cable, MIG torch, gas regulator and electrode holder.


Product Description

Data sheet : SERVIMIG 210 MP XL

Input Voltage (1ph) 230V 50/60Hz
Power 60% 4,4 KVA
Uo 50 V 50 V 35 V
Amp. Min-max 5 ÷ 200 A 5 ÷ 200 A 30 ÷ 200 A
Amp. 60974-1 35% 200 A
100% 120 A
35% 200 A
100% 120 A
35% 200 A
100% 140 A
Aluminium Ø 0,8 ÷ 1,2 mm
Steel Ø 0,6 ÷ 1,0 mm
Flux Core Ø 0,8 ÷ 1,0 mm
Stainless Steel Ø 0,8 ÷ 1,0 mm
Brazing Ø 0,8 ÷ 1,0 mm
Ø E 1,6 ÷ 5 mm
Insulation H
Protec. Degree IP22S
Dimens. (L*W*H) 600x255x480 mm
Box (L*W*H) 750x400x515 mm
Weight net 29,6 / 25,4 Kg
Code S110235380
Generator S110235433
Electr. Holder S110235348
MIG torch S110234665
Gas regulator S110234653
Earth clamp S110235352
Kit Code S110235380

In STICK mode, the microprocessor controls the Hot Start, Arc Force and Anti-sticking functions. In TIG mode, it controls the Lift Arc function and in MIG mode it allows either manual or fully synergic welding. Slope-up motor setting and automatic soft start wire feed control of the arc. All functions can be easily selected on the front panel. The digital LCD display shows the welding voltage and current and all the parameters selected. Their simplicity and versatility make them perfect for use in body shops, workshops and for all maintenance tasks.
