Servimig 220 MP +
2987.00€ HT
SPECIAL OFFER
(valid until July 31st, 2020)
Microprocessor-controlled welding PULSED inverter suitable for DC controlled MIG/MAG, TIG and STICK WELDING, which guarantees excellent stability of the welding arc and no welding spatters.

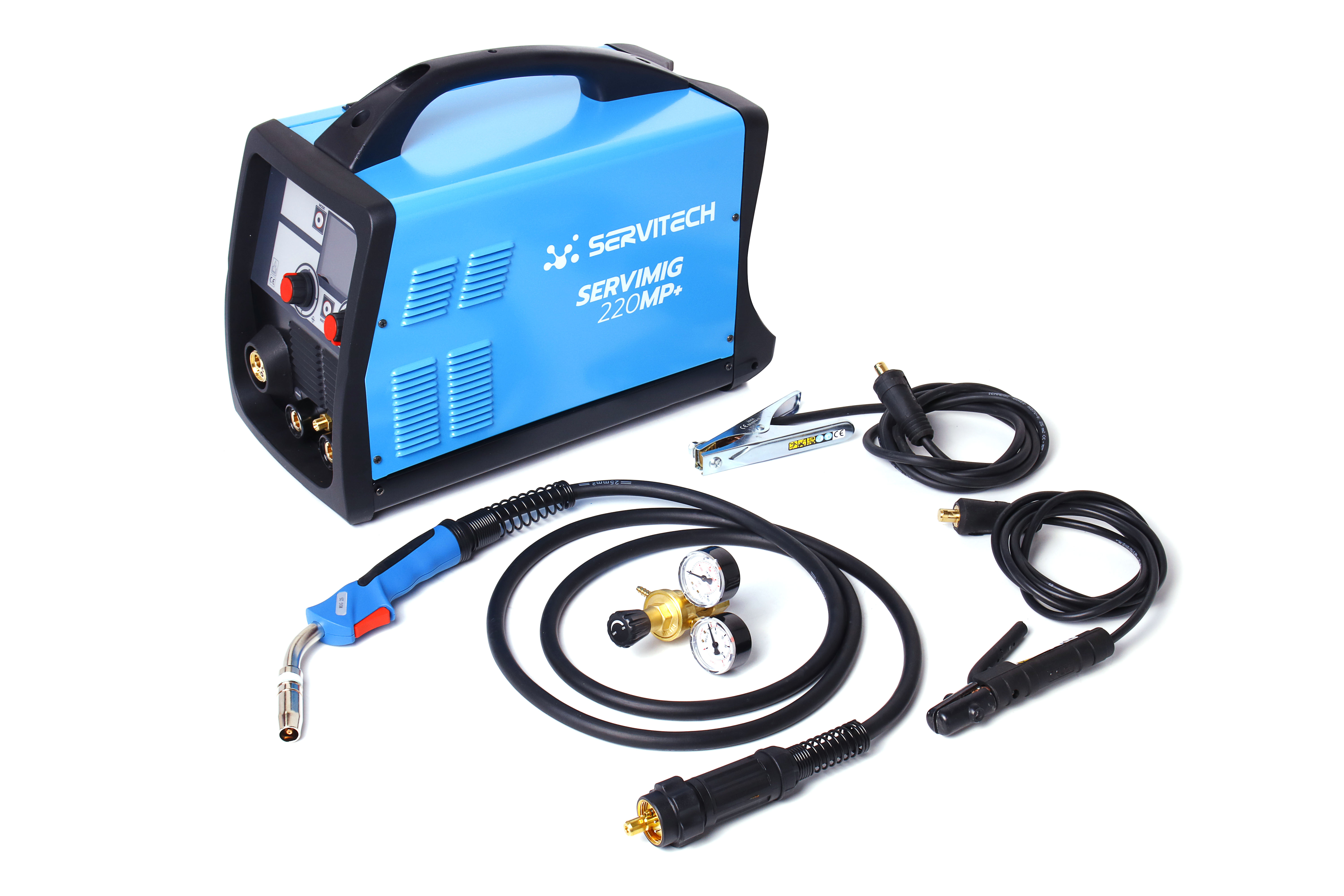

This price includes : Generator, Ground cable, MIG torch, gas regulator and electrode holder.
Product Description
Data sheet : SERVIMIG 220 MP+
| Nom | SERVIMIG 220 MP+ | ||
| Input Voltage | (1ph) 230V 50/60Hz | ||
| Power 60% | 5,5 KVA | ||
| MMA | TIG | MIG | |
| Uo | 65 V | 65 V | 35 V |
| Amp. Min-max | 5 ÷ 200 A | 5 ÷ 200 A | 20 ÷ 200 A |
| Amp. 60974-1 | 35% 200 A 100% 120 A |
35% 200 A 100% 120 A |
35% 200 A 100% 140 A |
| Aluminium | – | – | Ø 0,8 ÷ 1,2 mm |
| Steel | – | – | Ø 0,6 ÷ 1,0 mm |
| Flux Core | – | – | Ø 0,8 ÷ 1,0 mm |
| Stainless Steel | – | – | Ø 0,8 ÷ 1,0 mm |
| Brazing | – | – | Ø 0,8 ÷ 1,0 mm |
| Ø E | 1,6 ÷ 5 mm | – | – |
| Insulation | H | ||
| Protec. Degree | IP22S | ||
| Dimens. (L*W*H) | 500x280x420 mm | ||
| Box (L*W*H) | 685x295x395 mm | ||
| Weight net | 24 / 20 Kg | ||
| Code | S110235379 | ||
| CONFIGURATION KIT | |||
| Generator | S110235442 | ||
| Electr. Holder | S110235348 | ||
| MIG torch | S110234665 | ||
| Gas regulator | S110234653 | ||
| Earth clamp | S110235352 | ||
| Kit Code | S110235379 | ||

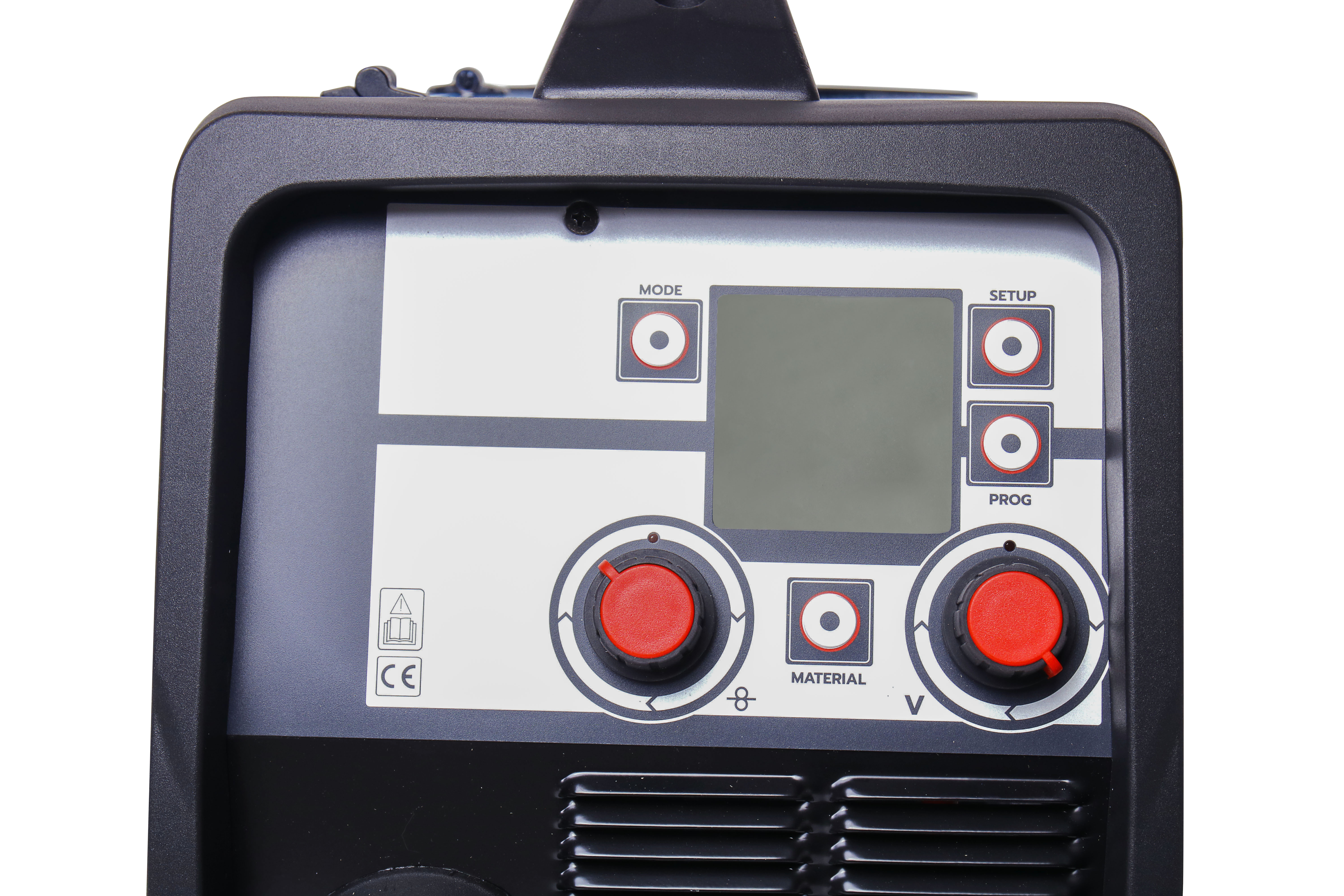

In STICK mode, the microprocessor controls the Hot Start, Arc Force and Anti-sticking functions. In TIG mode, it controls the Lift Arc function and in MIG mode it allows either manual or fully synergic welding in PULSED or flat current. Slope-up motor setting and automatic soft start wire feed control of the arc. All functions can be easily selected on the front panel. The digital LCD display shows the welding voltage and current and all the parameters selected . MP220 is compact , lightweight and equipped to accept reels with diameter of 200 mm. Their simplicity and versatility make them perfect for use in body shops, workshops and for all maintenance tasks.
