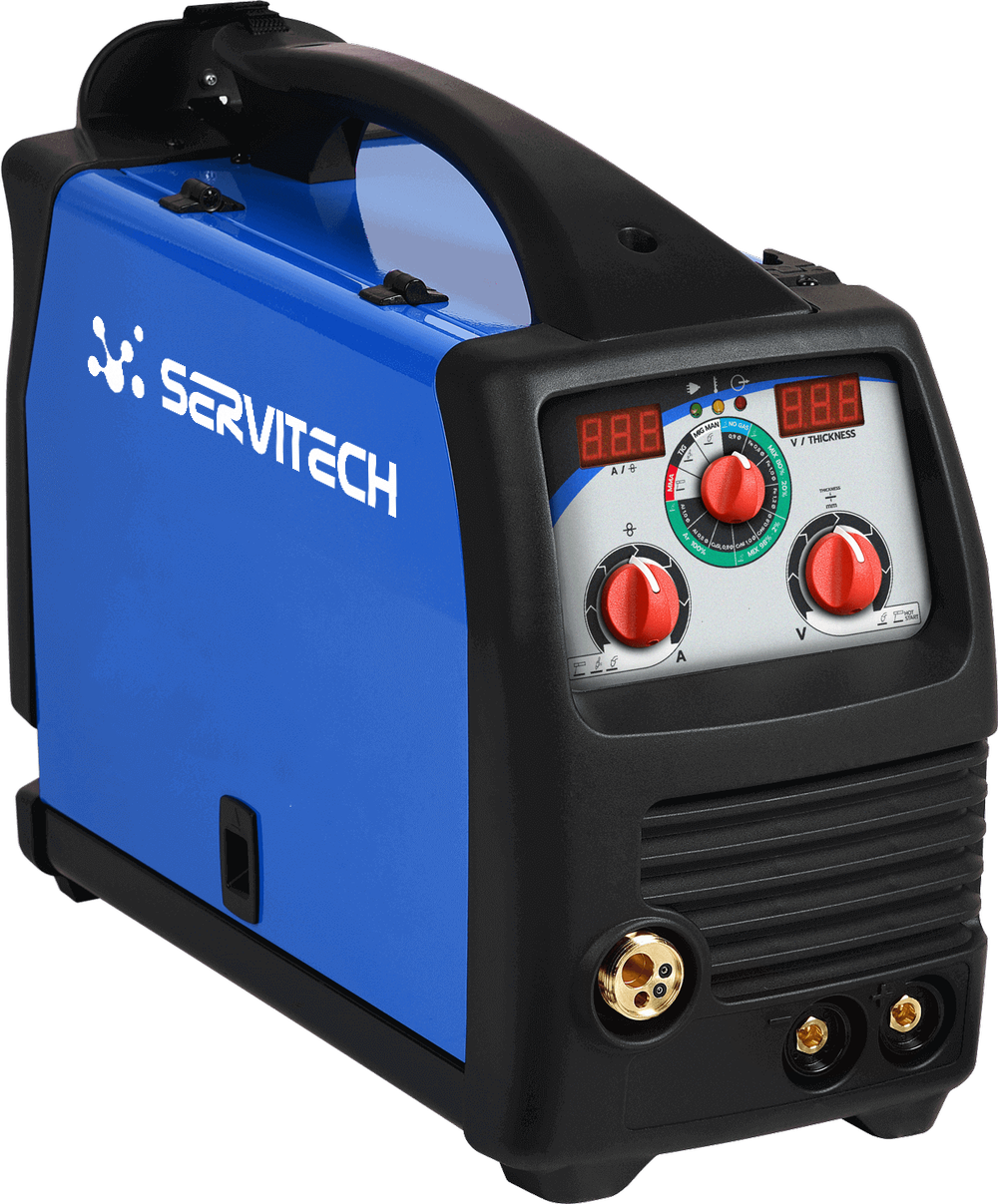

Microprocessor-controlled welding inverter suitable for DC controlled MIG/MAG and STICK WELDING, which guarantees excellent stability of the welding arc and no welding spatters.
This price includes : KIT (Det, PM, Torch, PPE).
Data sheet : SERVIMIG 200 MP Digit
Nom | SERVIMIG 200 MP Digit | ||
Input Voltage | (1ph) 230V 50/60Hz | ||
Power 60% | 5,5 KVA | ||
MMA | TIG | MIG | |
Uo | 65 V | 65 V | 35 V |
Amp. Min-max | 5 ÷ 200 A | 5 ÷ 200 A | 20 ÷ 200 A |
Duty Cycle 40°C | 35% 200 A 100% 120 A |
35% 200 A 100% 120 A |
35% 200 A 100% 140 A |
Steel | 0,6 ÷ 1,0 Ø mm | ||
Stainless Steel | 0,8 ÷ 1,0 Ø mm | ||
Flux Core | 0,9 Ø mm | ||
Aluminium | 0,8 ÷ 1,0 Ø mm | ||
Brazing | 0,8 ÷ 1,0 Ø mm | ||
Ø Electrode | Ø 1,6 ÷ 5,0 mm | ||
Electrode Type | 6013 – 7018 – CrNi | ||
Insulation | H | ||
Protec. Degree | IP22S | ||
Dimens. (L*W*H) | 480x220x385 mm | ||
Box (L*W*H) | 685x275x450 mm | ||
Weight net | 23 / 19 Kg | ||
Code | S110235787 |
In STICK mode, the microprocessor controls the Hot Start, Arc Force and Antisticking functions. In TIG mode, its controls the Lift Arc function anf in MIG mode it allows either manual or fully synergic welding.
Regulation of the slope-up motor, automatic soft start wire feed control of the arc. Its simplicity and versatility make it perfect for use in body shops, worksjops and for all maintenance tasks. All of the functions can be easily selected on the front panel.
Digital displays show the welding voltage and current and all the parameters selected. This model is the wheel-based version and is fitted to accept reels with diameter of 300mm and 200mm.
