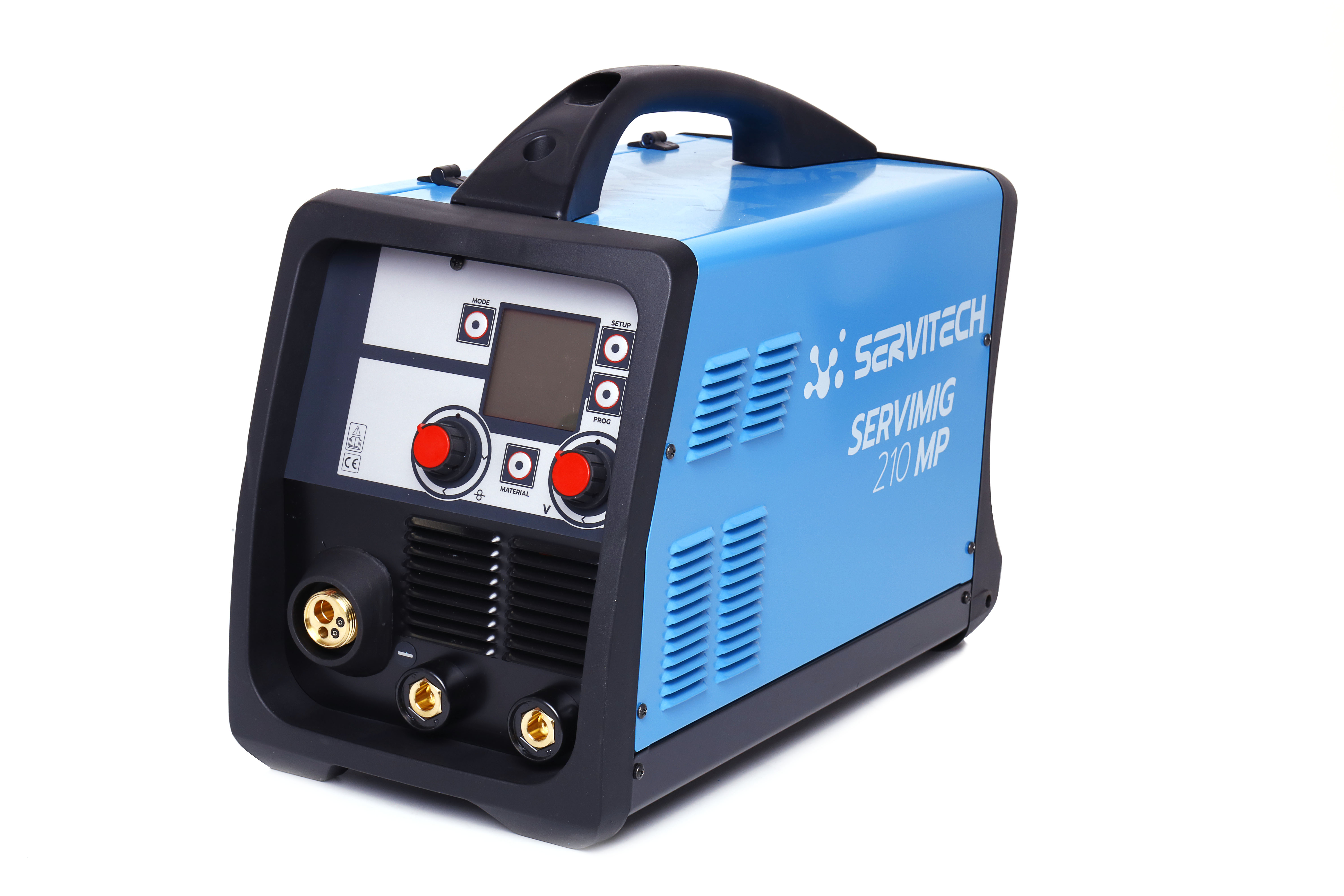

Servimig 210 MP

2460.00 HT

Microprocessor-controlled welding inverter suitable for DC controlled MIG/MAG, TIG and STICK WELDING, which guarantees excellent stability of the welding arc and no welding spatters.

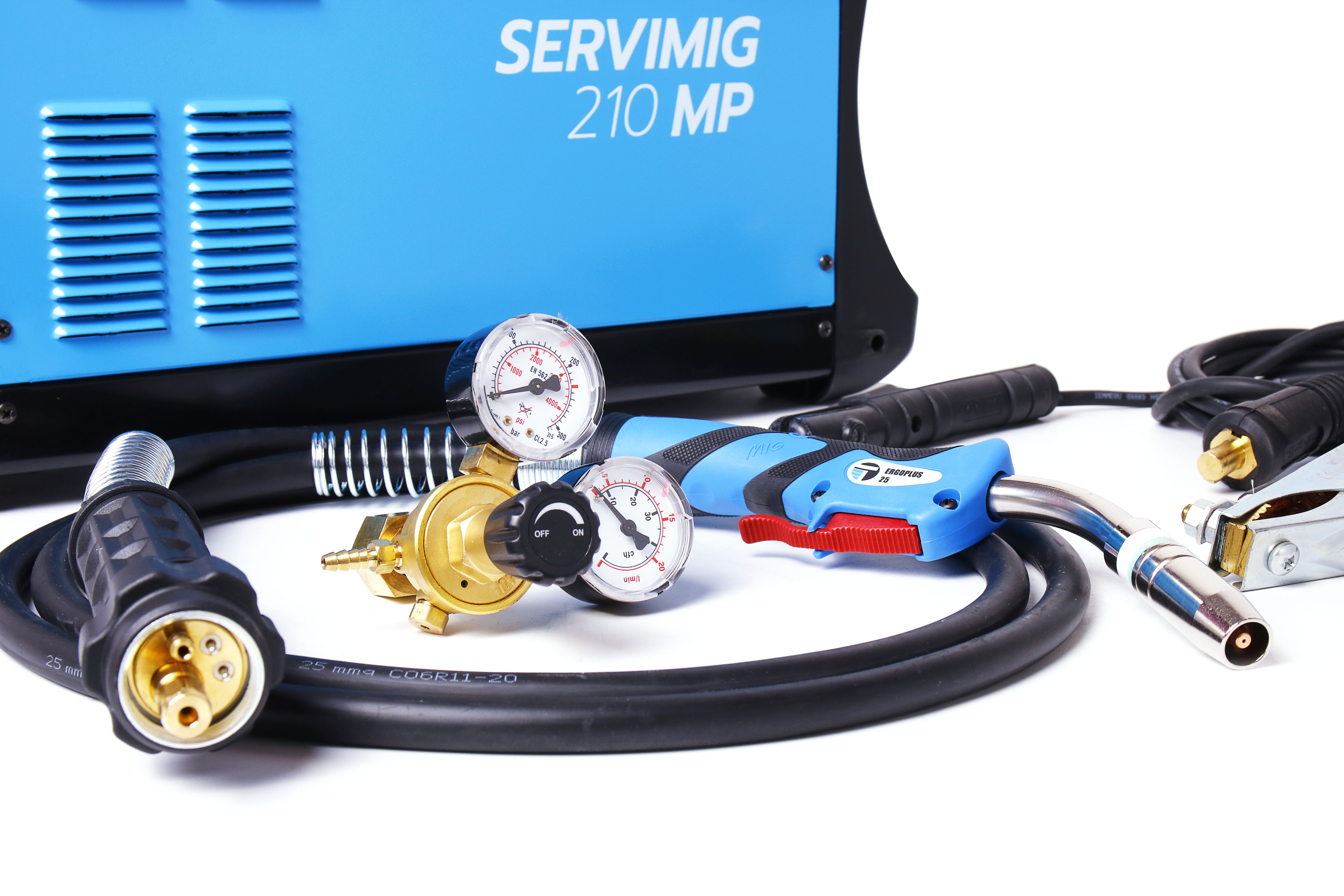

This price includes : Generator, Ground cable, MIG torch, gas regulator and electrode holder.

Product Description

Data sheet : SERVIMIG 210 MP

Nom SERVIMIG 210 MP
Input Voltage (1ph) 230V 50/60Hz
Power 60% 4,4 KVA
MMA TIG MIG
Uo 50 V 50 V 35 V
Amp. Min-max 5 ÷ 200 A 5 ÷ 200 A 30 ÷ 200 A
Amp. 60974-1 35% 200 A
100% 120 A
35% 200 A
100% 120 A
35% 200 A
100% 140 A
Aluminium Ø 0,8 ÷ 1,2 mm
Steel Ø 0,6 ÷ 1,0 mm
Flux Core Ø 0,8 ÷ 1,0 mm
Stainless Steel Ø 0,8 ÷ 1,0 mm
Brazing Ø 0,8 ÷ 1,0 mm
Ø E 1,6 ÷ 5 mm
Insulation H
Protec. Degree IP22S
Dimens. (L*W*H) 500x280x420 mm
Box (L*W*H) 685x295x395 mm
Weight net 23 / 21 Kg
Code S110235382
CONFIGURATION KIT
Generator S110235443
Electr. Holder S110235348

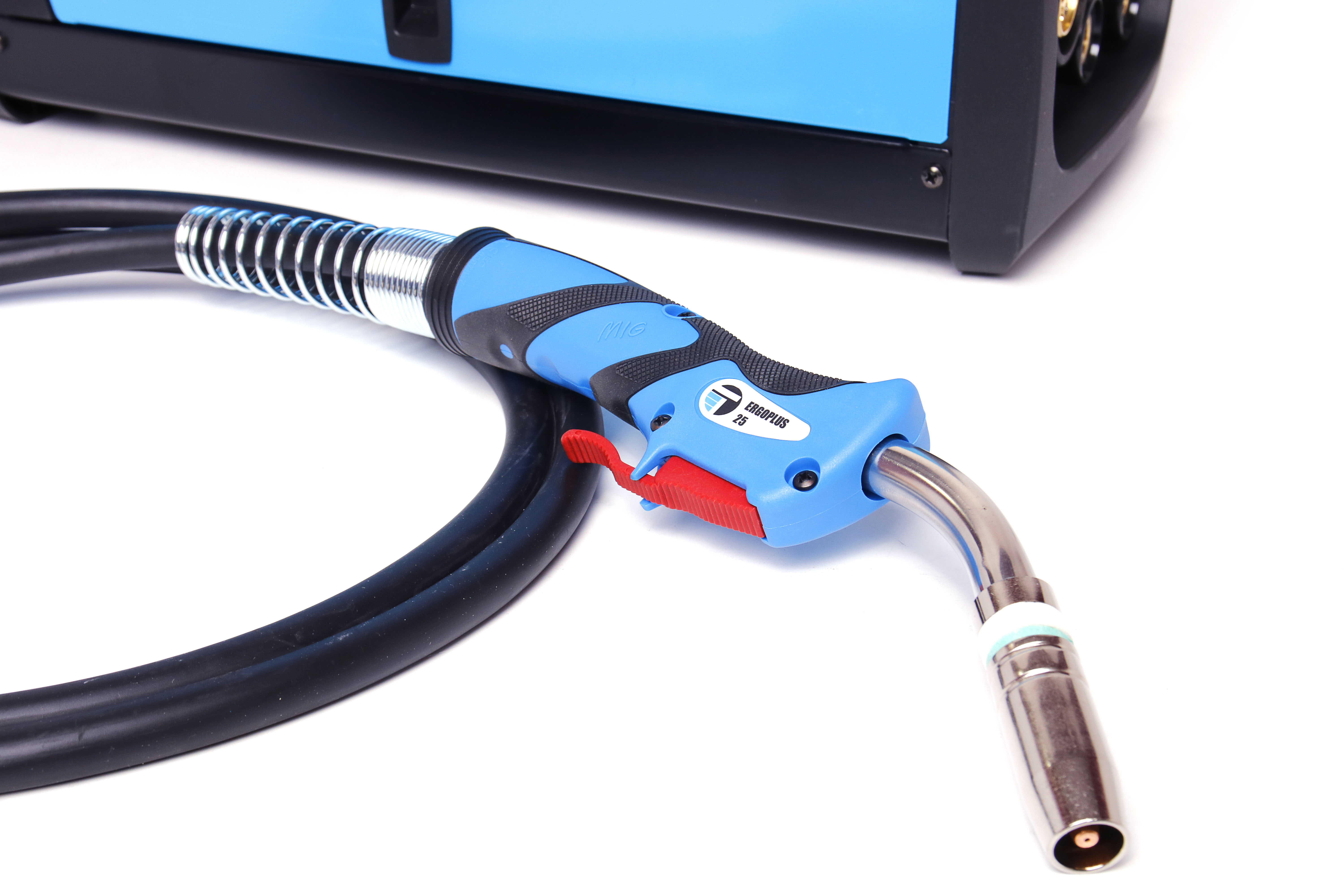

MIG torch S110234665
Gas regulator S110234653
Earth clamp S110235352
Kit Code S110235382

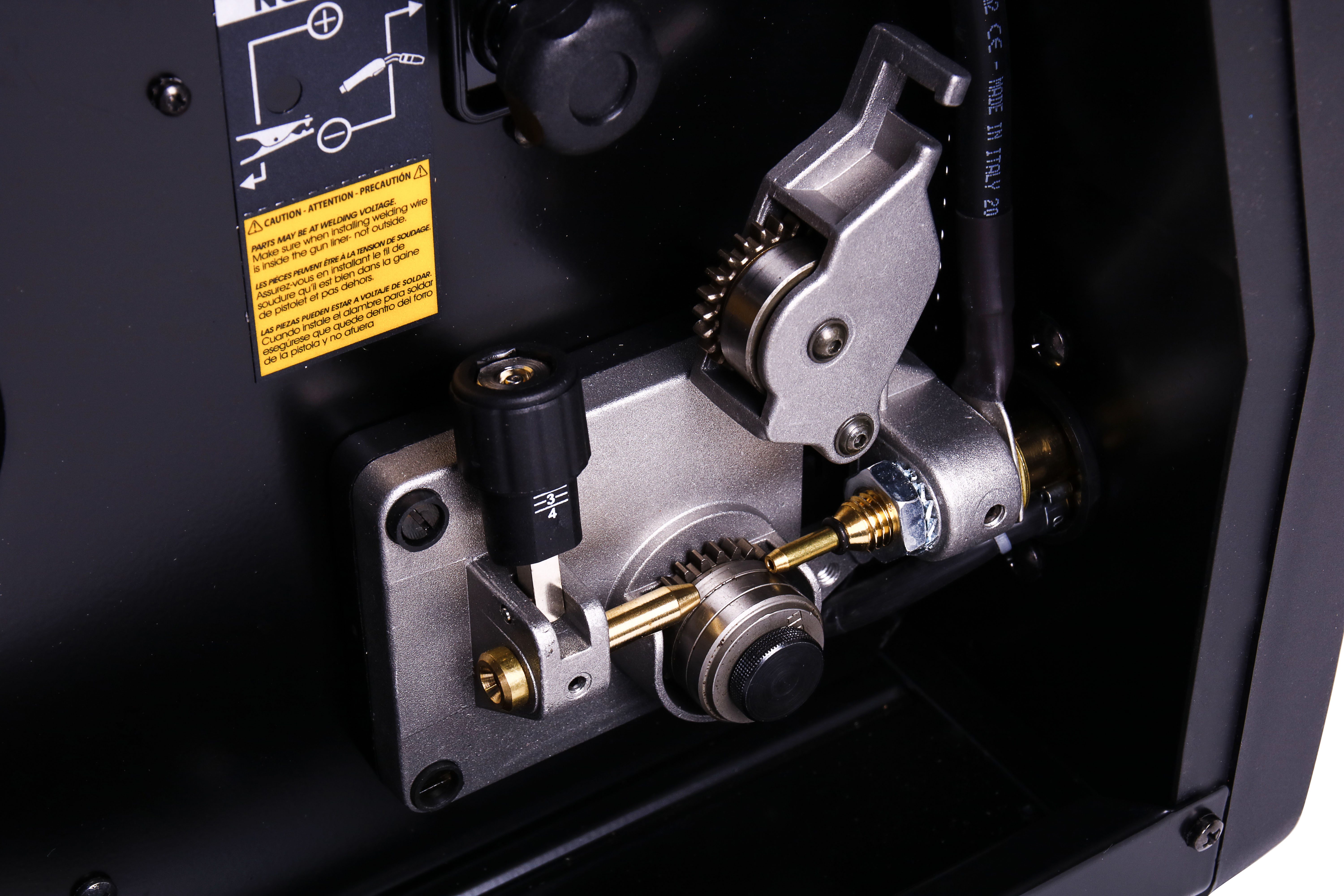

In STICK mode, the microprocessor controls the Hot Start, Arc Force and Anti-sticking functions. In TIG mode, it controls the Lift Arc function and in MIG mode it allows either manual or fully synergic welding. Slope-up motor setting and automatic soft start wire feed control of the arc. All functions can be easily selected on the front panel. The digital LCD display shows the welding voltage and current and all the parameters selected . MP210 is compact , lightweight and equipped to accept reels with diameter of 200 mm. Their simplicity and versatility make them perfect for use in body shops, workshops and for all maintenance tasks.
