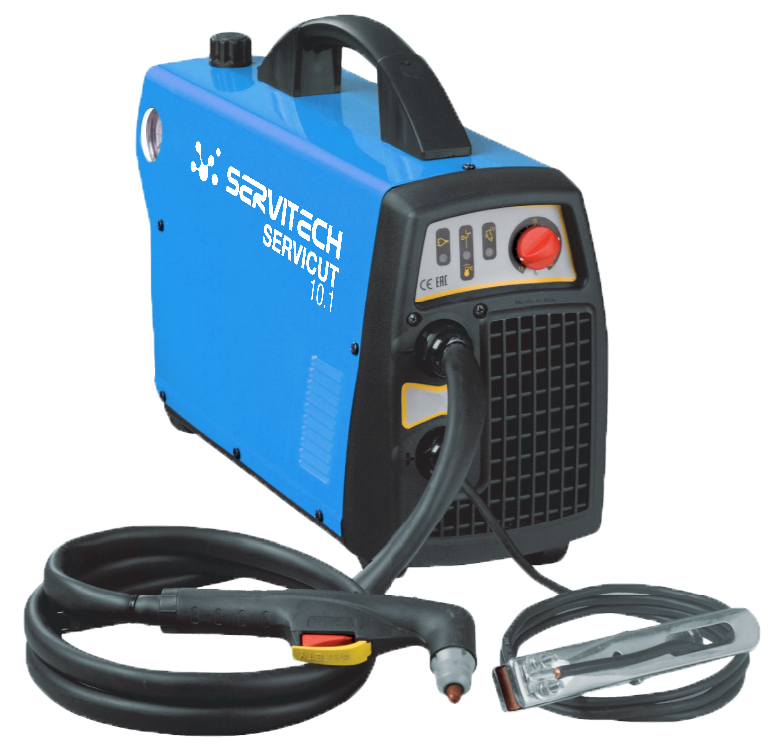

Servicut 10.1
1442.00€ HT
The Plasma, based on Inverter technology, guarantees accurate and clean plasma cut to 10mm thickness. Easy to handle and operate, this system is suitable for cutting thin materials at high speed.
Product Description
Data sheet : SERVICUT 10.1
| Nom | SERVICUT 10.1 |
| Plasma Torch | PT40 |
| Input Voltage | (1ph) 230V 50/60Hz |
| Power | 2,8 60% KVA Max |
| Uo | 310 V Max |
| Range | 10 ÷ 30 A |
| Cutting current | 30% 30 A |
| Thickness | 10 mm |
| Air pressure | 4 – 5 bar |
| Air capacity | 100 l/min |
| Insulation | H |
| Protec. Degree | IP22S |
| Dimens. (L*W*H) | 380x155x320 mm |
| Box (L*W*H) | 560x260x375 mm |
| Weight box/net | 10,6 / 9,7 Kg |
| Code | S110235072 |
The front panel is provided with clear and aimple graphics for the adjustement of cutting current and to indicate the intervention of any of the internal safety devices. Extra operator protection is provided by a special Start system. It is well suited for auto body repair shops, air conditioning systems and general plate working.
