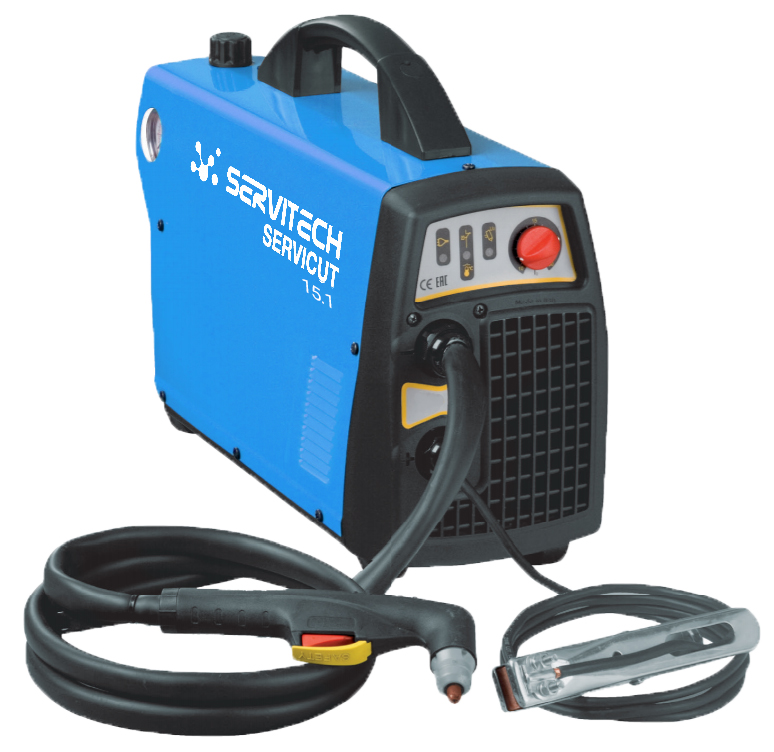

Servicut 15.1

1736.60 HT

The Plasma, based on Inverter technology, guarantees accurate and clean plasma cut to 10mm thickness. Easy to handle and operate, this system is suitable for cutting thin materials at high speed.

Product Description

Data sheet : SERVICUT 15.1

Nom SERVICUT 15.1
Plasma Torch PT40
Input Voltage (1ph) 230V 50/60Hz
Power 3,3 60% KVA Max
Uo 350 V Max
Range 10 ÷ 40 A
Cutting current 20% 40 A
Thickness 15 mm
13 25cm/min
Air pressure 4 – 5,5 bar
Air capacity 100 l/min
Insulation H
Protec. Degree IP22S
Dimens. (L*W*H) 380x155x320 mm
Box (L*W*H) 560x260x375 mm
Weight box/net 11,8 / 10,6 Kg
Code S110235071

The front panel is provided with clear and aimple graphics for the adjustement of cutting current  and to indicate the intervention of any of the internal safety devices. Extra operator protection is provided by a special Start system. It is well suited for auto body repair shops, air conditioning systems and general plate working.
