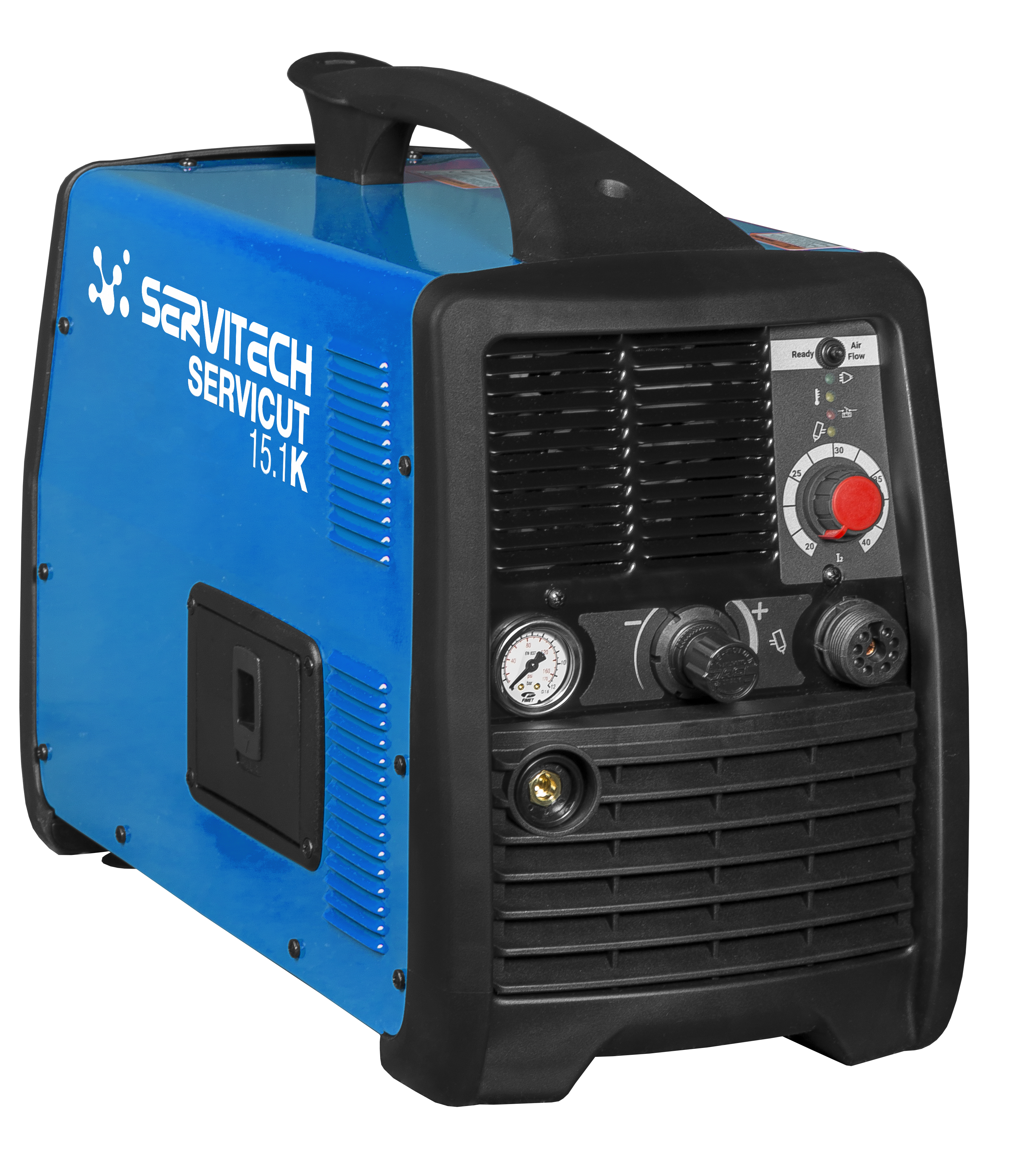

Servicut 15.1 k
3193.00€ HT
The new 15.1k enchances the existing range of plasma cutting machines with built-in compressor.
Product Description
Data sheet : SERVICUT 15.1 K
| Nom | SERVICUT 15.1 K | |
| Plasma Torch | PT40 EASY FIT | |
| Input Voltage | (1ph) 230V 50/60Hz | |
| Power 60% | 3,3 KVA | |
| Uo | 480 V Max | |
| COMPRESSOR | AIR | |
| Range | 20 ÷ 40 A | 20 ÷ 40 A |
| Cutting current | 40% 40 A | 40% 40 A |
| Thickness | 13 mm 11 25cm/min |
15 mm 13 25cm/min |
| Air pressure | – | 4 – 5,5 bar |
| Air capacity | – | 100 l/min |
| Insulation | H | |
| Protec. Degree | IP22S | |
| Dimens. (L*W*H) | 450x235x400 mm | |
| Box (L*W*H) | 565x300x410 mm | |
| Weight box/net | 30,8 / 29,6 Kg | |
| Code | S110235390 | |
The use of a bicylindrical compressor increases the amount of air yield and greatly reduces the vibrations and noises.
15.1K achieves excellent performances of duty cycle and cuttingthicknesses on all conductive materials. Suitable for light and heavy body works, maintenance of large facilities, conditioning plants, shipyards and metalworking in general.
