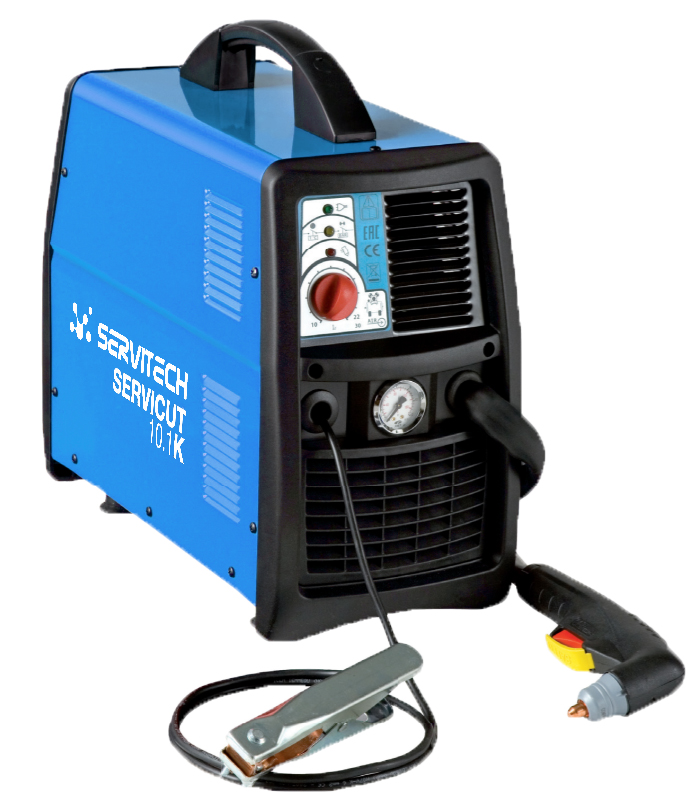

Servicut 10.1 k
2039.40€ HT
Plasma cutting systems based on inverter technology with internal compressor.
Product Description
Data sheet : SERVICUT 10.1k
| Nom | SERVICUT 10.1 K | |
| Plasma Torch | PT40C | |
| Input Voltage | (1ph) 230V 50/60Hz | |
| Power 60% | 2,5/3 KVA | |
| Uo | 310 V Max | |
| COMPRESSOR | AIR | |
| Range | 10 ÷ 25 A | 10 ÷ 30 A |
| Cutting current | 40% 25 A | 30% 30 A |
| Thickness | 8 mm | 10 mm |
| Air pressure | – | 4,5 bar |
| Air capacity | – | 100 l/min |
| Insulation | H | |
| Protec. Degree | IP22S | |
| Dimens. (L*W*H) | 435x200x395 mm | |
| Box (L*W*H) | 565x300x410 mm | |
| Weight box/net | 21,5 / 20 Kg | |
| Code | S110235070 | |
Portable, single-phase, microprocessor-controlled and equipped with pneumatic torch without HF. Easily used even at some distance from a compressed air source, they produce quality cutting on all conductor materials such as steel, stainless steel, aluminium, copper, brass, etc. Suitable for lightweight and heavy bodywork, maintenance of large installations, air conditioning systems, shipyards and metalwork in general.
