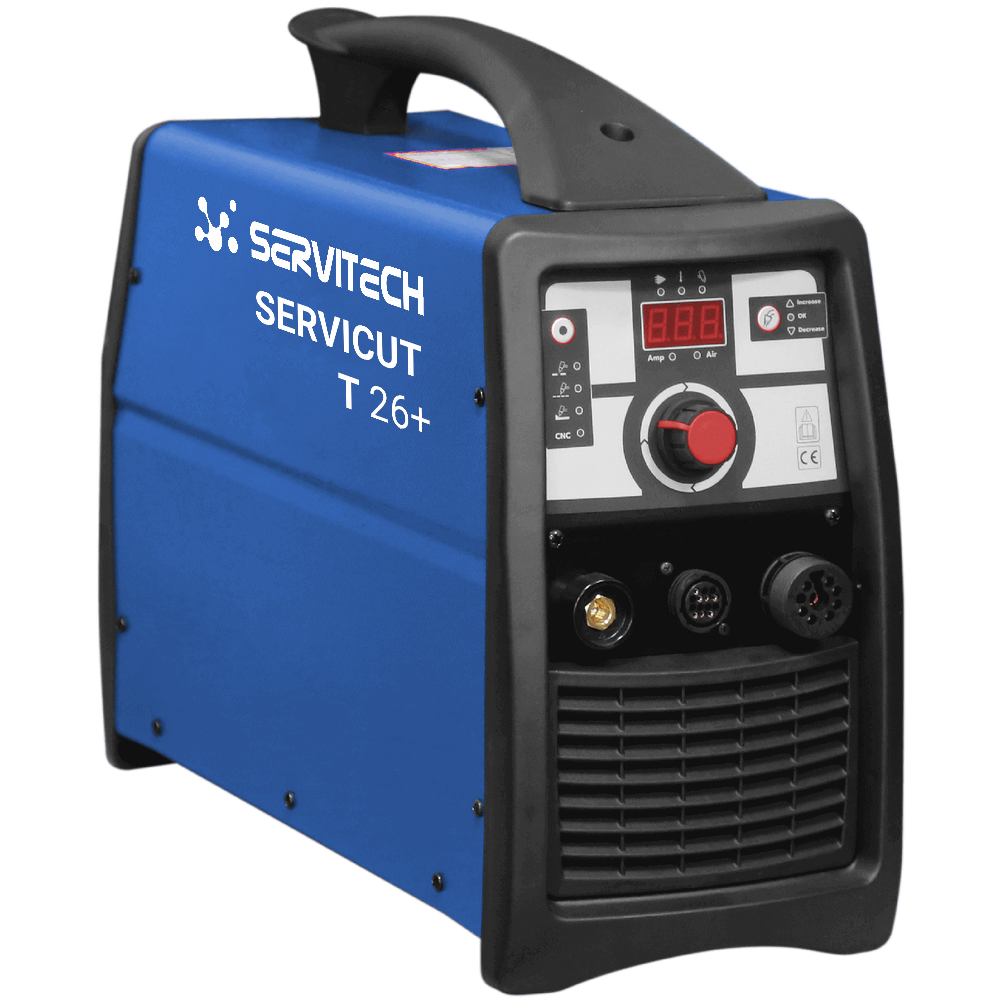

Data sheet : SERVICUT T 26+
Nom | SERVICUT T 26+ |
Plasma Torch | ST 70 (70 A) H.FIT |
Input Voltage | (3ph) 400V 50/60Hz |
Power 50% | 11,8 KVA |
Max input current | 16,5 A |
Uo | 380 V |
Range | 20 ÷ 65 A |
Cutting current | 60% 65 A 100% 50 A |
Thickness | 25cm/min 22 mm Max 26 mm Severance 30 mm Pierce 16 mm |
Required air capacity | 220 l/min @ 5 bar |
Insulation | H |
Protec. Degree | IP22S |
Dimens. (L*W*H) | 495x195x395 mm |
Box (L*W*H) | 640x260x450 mm |
Weight box/net | 23,3 / 22,3 Kg |
Code | S110235791 |
