Easy-to-use welding inverters: optimum welding performance with all types of commercial electrodes (rutile, basic, stainless steel). They fit overvoltage, over temperature and anti-sticking control.
They are equipped with STICK/TIG (lift arc) selector. They can be connected to power sources and long connection lines. They are ideal for maintenance jobs and workshops applications.

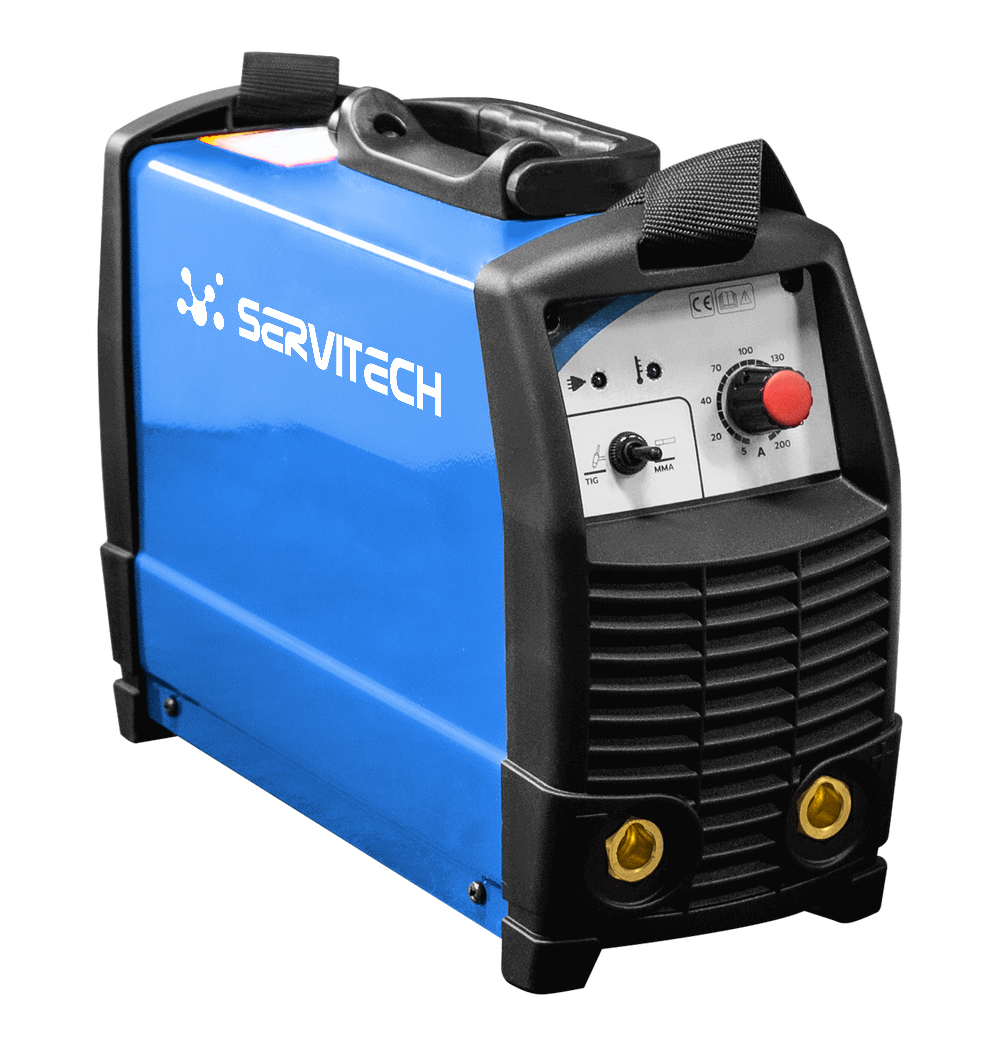

Date sheet : SERVIARC 200
Nom | SERVIARC 200 |
Input Voltage | (1ph) 230V 50/60Hz |
Power 60% | 6 KW |
Uo | 48 V |
Work Range | 5 ÷ 200 A |
Amp. 60974-1 | 60% 200 A |
100% 155 A | |
∅E | 1.6 ÷ 5.0 mm |
Electrode type | 6013 – 7018 |
Insulation | H |
Protect Degree | IP23S |
Dimens. (LxWwH) | 370×140×245 mm |
Box (LxWxH) | 490×180×335 mm |
Weight box/net | 7.2 / 6.7 Kg |
Code | S110235024 |
