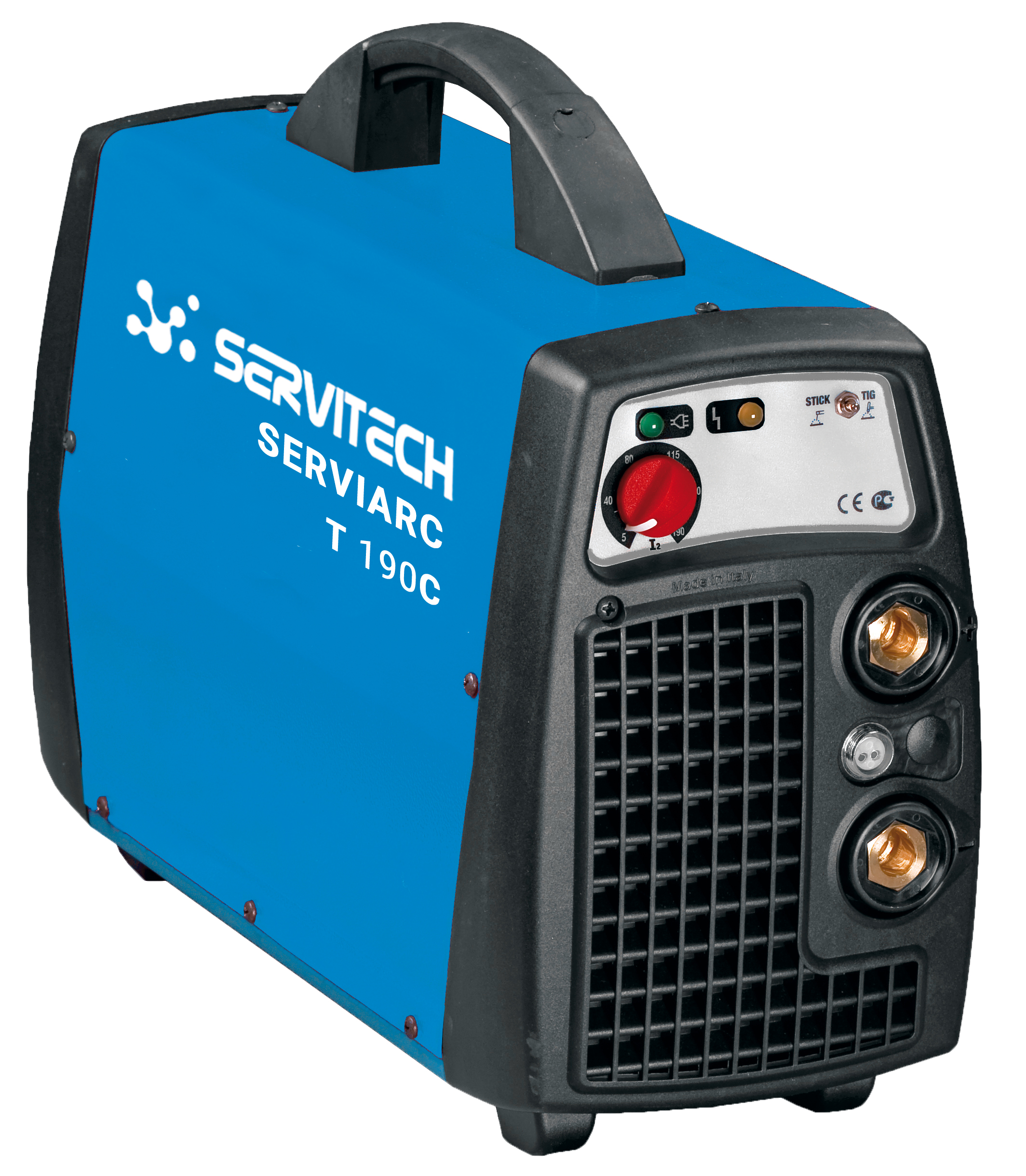

Serviarc T 190C
1365.00€ HT
Welding inverters designed to work with unstable supply voltages caused by the use of power units and long connection lines.
Product Description
Data sheet : SERVIARC T 190C
| Nom | SERVIARC T 190 C |
| Input Voltage | (1ph) 230V 50/60Hz |
| Power 60% | 7 KVA |
| Uo | 98 ÷ 20 V |
| Amp. Min-max | 5 ÷ 190 A |
| Amp. 60974-1 | 40% 190 A 100% 120 A |
| Ø E | 1,6 ÷ 4 mm |
| Insulation | H |
| Protec. Degree | IP22S |
| Dimens. (L*W*H) | 465x175x345 mm |
| Box (L*W*H) | 550x215x395 mm |
| Weight box/net | 13,2 / 12,2 Kg |
| Code | S110235035 |
Able to meet the requirements of even the most demanding user with a wide range of currents
and a high work cycle.
Excellent welding features guaranteed with all types of commercial electrodes (rutile, basic, stainless steel, etc.). Equipped with special features controlling excess input voltage, overheating and electrode sticking, functions which protect generators even in the harshest working conditions.
The TIG/MMA switch also enables use for TIG Lift Arc welding. Suitable to weld aluminium and cellulosic electrodes. The high duty cycle makes these inverters suitable for use on heavy steel structural work, in industry and by professional.
