Product Description

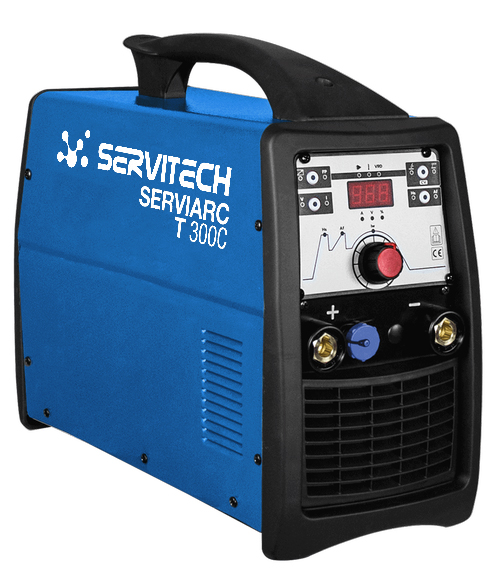

Data sheet : SERVIARC T 300C
| Nom | SERVIARC T 300 C | |
| Input Voltage | (3ph) 400V 50/60Hz | |
| TIG | MMA | |
| Power 60% | 8 KW | 10 KW |
| Uo | 75 ÷ 12 V | 75 ÷ 12 V |
| Amp. Min-max | 5 ÷ 300 A | 5 ÷ 270 A |
| Amp. 60974-1 | 50% 300 A 100% 210 A |
60% 270 A 100% 200 A |
| Ø E | – | 1,6 ÷ 6 mm |
| Electrode Type | 6010 – 6011 – 6013 – 7018 – Cast Iron – CrNi – Aluminium | |
| Insulation | H | |
| Protec. Degree | IP22S | |
| Dimens. (L*W*H) | 440x195x395 mm | |
| Box (L*W*H) | 685x290x485 mm | |
| Weight box/net | 20 / 18,8 Kg | |
| Code | S110235056 | |
| TROLLEY | S110235101 | |
| RC – 10m – 12pin | S110235051 | |
Welding inverters designed to work with unstable supply voltages caused by the use of power generators and long connection lines, designed to meet the requirements of even the most demanding user with a wide current range and a
high duty cycle.
Excellent welding features guaranteed with all types of commercial electrodes due to the possibility to setup Arc Force and Hot Start values. Equipped with special features controlling excess input voltage, overheating and electrode
sticking, functions which protect against instable generators even in the harshest working conditions. The TIG/MMA switch also enables use for TIG Lift Arc welding.
Equipped with digital display to show welding current, welding voltage and other parameters (hot start and arc force). The generator is fitted with a VRD, which allows to work even in hazard environments. All generators are equipped also with
CV function which allow to use auto sensitive wire feeders.
