1400.00€ HT
3ph welding inverter designed to meet the requirements of even the most demanding user with a wide current range and a good duty cycle.

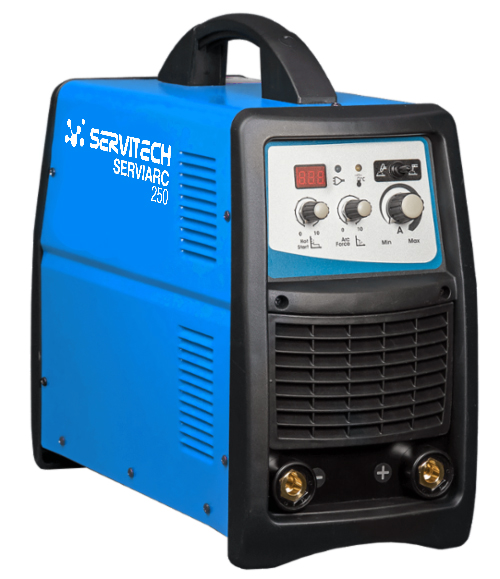

Data sheet : SERVIARC 250
Nom | SERVIARC 250 | |
Input Voltage | (3ph) 400V 50/60Hz | |
MMA | TIG | |
Power 60% | 7 KVA | 4.5 KVA |
Uo | 40 V | 40 V |
Work Range | 10 ÷ 250 A | 10 ÷ 250 A |
Amp. 60974-1 | 40% 250 A | 40% 250 A |
60% 210 A | 60% 210 A | |
100% 180 A | 100% 180 A | |
∅E | 1.6 ÷ 5.0 mm | 1.6 ÷ 5.0 mm |
Electrode type | 6013 – 7018 | 6013 – 7018 |
Insulation | H | |
Protect Degree | IP22S | |
Dimens. (LxWwH) | 420×200×380 mm | |
Box (LxWxH) | 565×300×410 mm | |
Weight box/net | 12.7 / 11.6 Kg | |
Code | S110235054 |
Excellent welding features guaranteed with all types of commercial electrodes thanks to the possibility to setup Hot Start and Arc Force parameters. Equipped with special overvolatage, over temperature and antisticking functions, which protect generators even in the harshest working conditions. The TIG/MMA button also enables use for TIG welding with Lift Arc. Equipped with digital display to show welding current.
