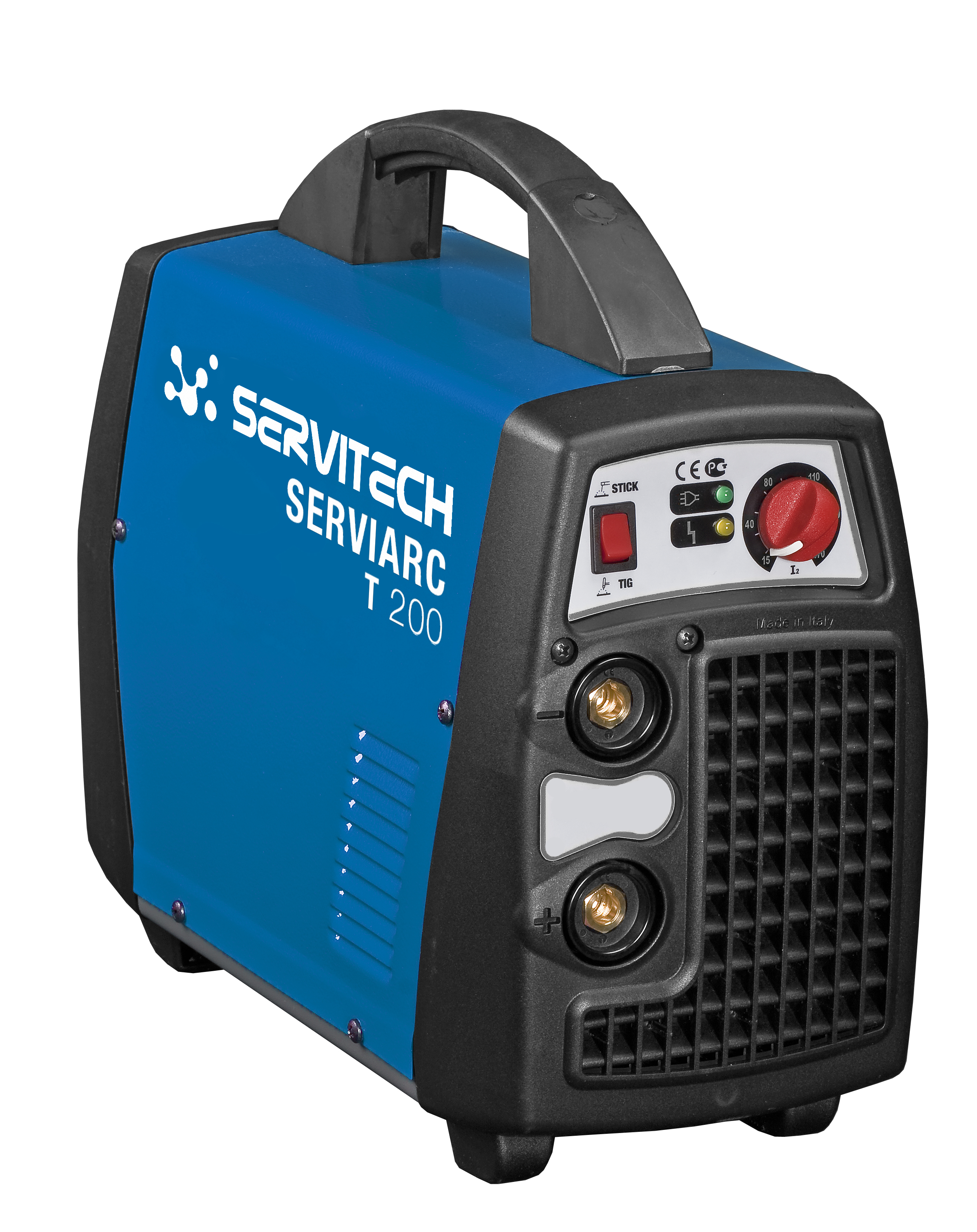

Serviarc T 200

860.00 HT

Welding inverters designed to work with unstable supply voltages caused by use of power units and long connection lines.

Product Description

Data sheet : SERVIARC T 200

Nom SERVIARC T 200
Input Voltage (3ph) 230V     50/60Hz
Power 60% 5 KVA
Uo 60 V
Work Range 5  ÷ 200 A
Amp. 60974-1 35%     200 A
60%    150 A
∅E 1.6 ÷ 5.0 mm
Insulation H
Protect Degree IP22S
Dimens. (LxWwH) 360×155×320 mm
Box (LxWxH) 470×195×365 mm
Weight box/net 7.8 / 7.2 Kg
Code S110235032

Welding inverters designed to work with unstable supply voltages caused by use of power units and long connection lines. Able to meet the requirements of even the most demanding user with a wide range of currents and a high work cycle. Excellent welding features guaranteed with all types of commercial electrodes (rutile, basic, stainless steel… etc)

Equipped with special features controlling excess input voltage, overheating and electrode sticking, functions which protect generators even in the harshest working conditions. The TIG/MMA switch also enables use for TIG Lift Arc Welding. Suitable to weld aluminium and cellulosic electrodes. The hifh duty cycle makes these inverters suitable for use on heavy steel structural work, in industry and by professional.
