1771.60€ HT
Plasma cutting systems based on inverter technology with internal compressor. Portable, single-phase, micropocessor-controlled and equipped with pneumatic torch without HF.

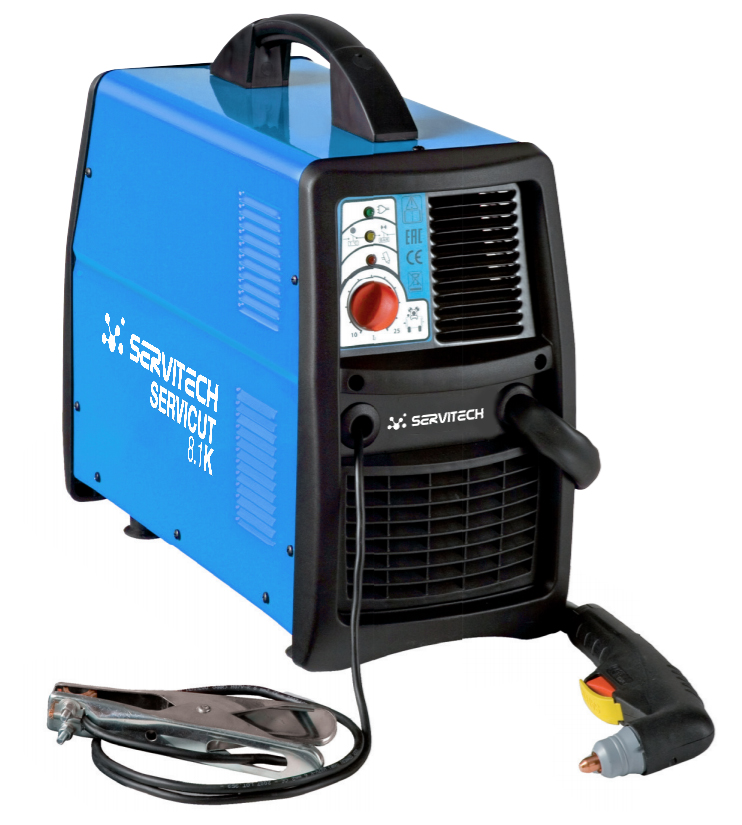

Data sheet : SERVICUT 8.1 K
Nom | SERVICUT 8.1 K |
Plasma Torch | PT40C |
Input Voltage | (1ph) 230V 50/60Hz |
Power 60% | 2,5 KVA |
Uo | 310 V Max |
Compressor | |
Range | 10 ÷ 25 A |
Cutting current | 50% 25 A |
Thickness | 8 mm |
Air pressure | – |
Air capacity | – |
Insulation | H |
Protec. Degree | IP22S |
Dimens. (L*W*H) | 435x200x395 mm |
Box (L*W*H) | 565x300x410 mm |
Weight box/net | 15,5 / 14,4 Kg |
Code | S110235069 |
Easily used even at some distance from a compressed air source, they produce quality cutting on all conductor materials such as steel, stainless steel aluminium, copper, brass, etc. Suitable for light weight and heavy bodywork, maintenance of large installations, air conditioning systems, shipyards and metalworks in general.
